TAWA-T2422
2U Industrial Rackmount Chassis for ATX MB

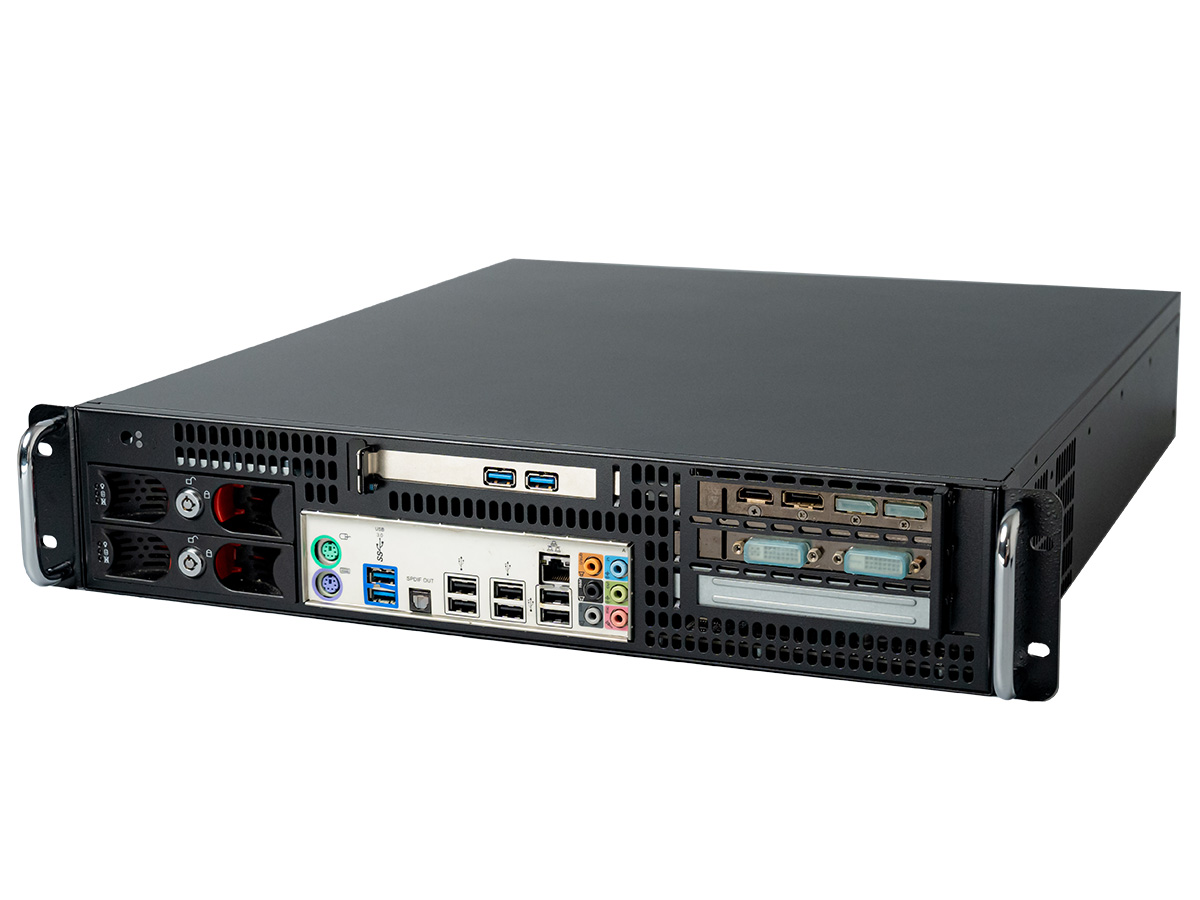

· Design for easy access from the front panel
· Support 2 x 3.5" SATA tray
· Support 4 x expansion slot on front panel

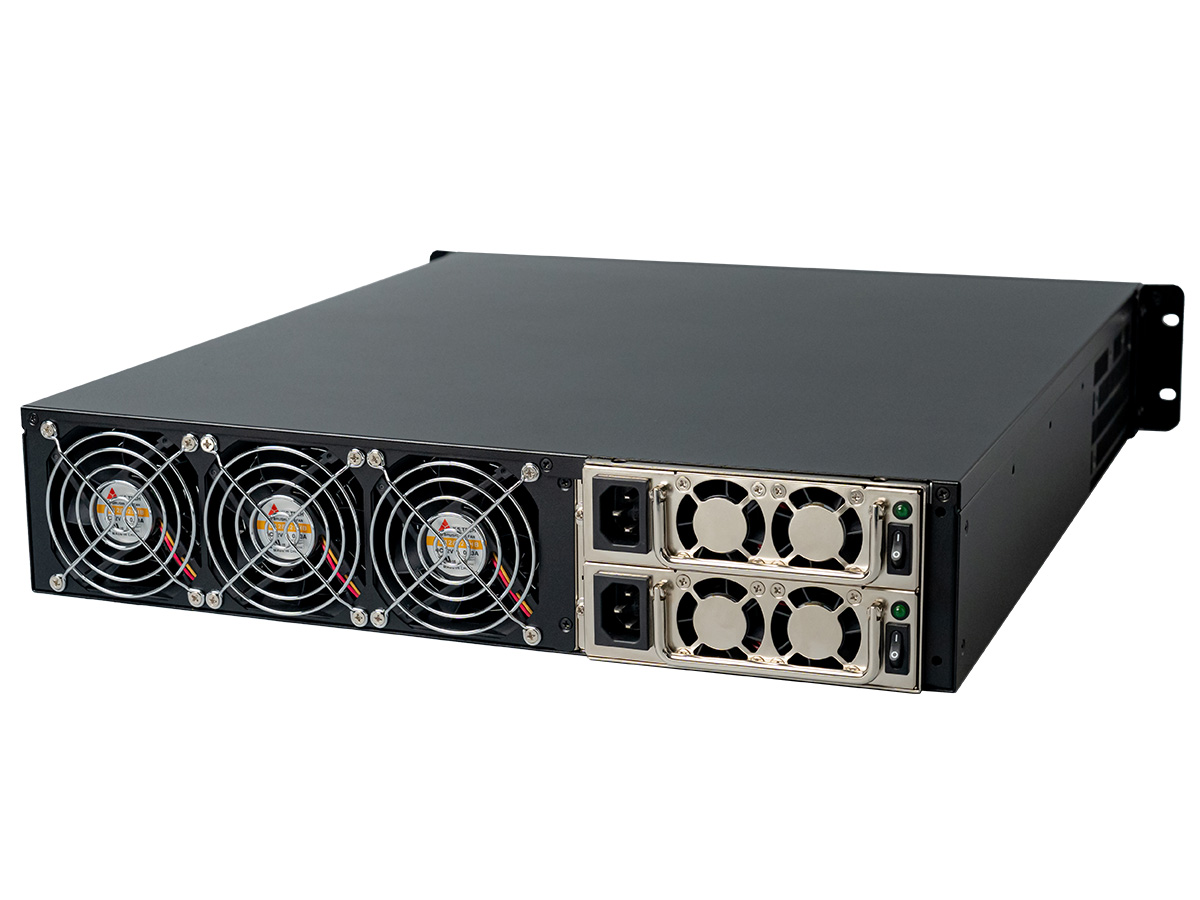

· Excellent cooling with 3 x 8cm fan(2 ball bearing)
· Support PSII PSU / Mini Redundant PSU
· Design for easy access from the front panel
· Support 2 x 3.5" SATA tray
· Support 4 x expansion slot on front panel
· Excellent cooling with 3 x 8cm fan(2 ball bearing)
· Support PSII PSU / Mini Redundant PSU
Specification
| Front Panel | |
| Power Switch | 1 |
| LED Indicators | HDD x1; Power x1 |
| Expansion Slot | 4 |
| HDD/SSD # and type | 3.5" x2 |
| Standard I/O Shield | 1(Not Included) |
| Internal Structure | |
| System Cooling | 8cm fan(2 Ball Bearing) x3 |
| Memory Height | Accept Standard Size |
| HDD/SSD # and type | 3.5" x2 + 2.5" x1 |
| Mechanical & Processing | |
| Dimensions | W:19.00"(482.6mm) x D:19.52"(495.8mm) x H:3.46"(88mm) |
| Applied M/B Form Factor | ATX |
| Material | Heavy Duty Cold-rolled Steel |
| Surface | Black Wet Paint with Texture Coat |
| Colour | Black / Customizable Colour |
| Power Solution Option | |
| PSII PSU | 500W/850W/1000W |
| Mini-Redundant PSU | 250W/400W/1000W |
