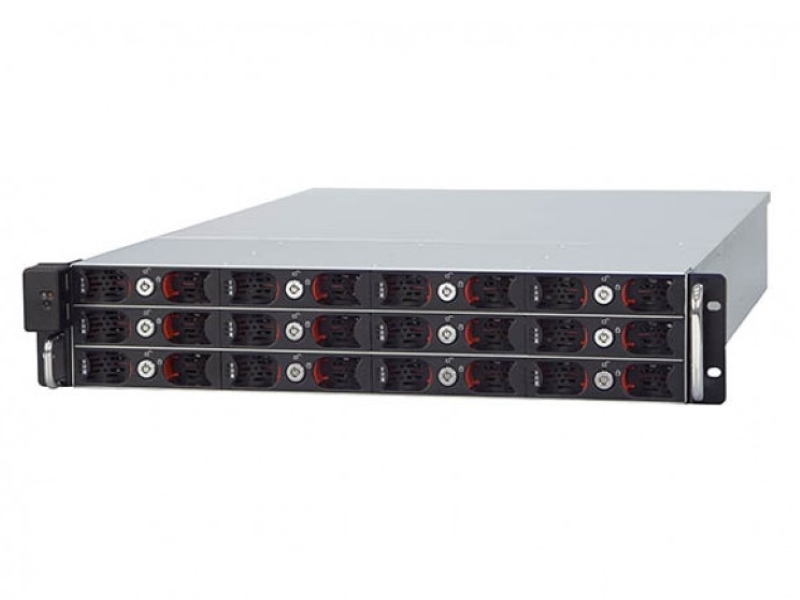

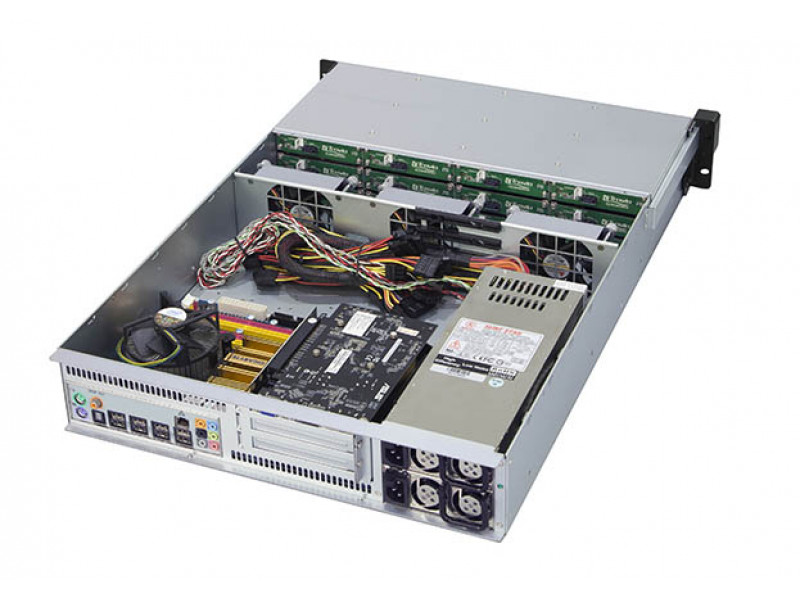

TAWA-T28B0
2U Industrial Rackmount Chassis for 12"x13" Server Board
· Support 12 x 3.5" SATA tray
· Excellent cooling with 3 x 8cm fan(2 ball bearing)
· Support 3 x expansion slot for PCIe or PCI card
· Support 2U single PSU or 1+1 redundant PSU
· Support 12 x 3.5" SATA tray
· Excellent cooling with 3 x 8cm fan(2 ball bearing)
· Support 3 x expansion slot for PCIe or PCI card
· Support 2U single PSU or 1+1 redundant PSU
Specification
| Front Panel | |
| Power Switch | 1 |
| LED Indicators | HDD x1; Power x1 |
| USB Port | 2 |
| HDD/SSD # and type | 3.5'' x12 |
| Back Panel | |
| Standard I/O Shield | 1(Not Included) |
| Expansion Slot | 3 |
| AC Socket | 1 |
| Internal Structure | |
| System Cooling | 8cm Fan(2 Ball Bearing) x3 |
| Memory Height | Accept Standard Size |
| Mechanical & Processing | |
| Dimensions | W:19.00"(482mm) x D:25.59"(650mm) x H:3.47"(88mm) |
| Applied M/B Form Factor | E-ATX |
| Material | SGCC |
| Surface | Black Wet Paint with Texture Coat |
| Colour | Black / Customizable Colour |
| Power Solution Option | |
| Power Supply | PSII 600W/800W Power Supply or 2U Redundant (400W+400W/ 600W+600W) |
