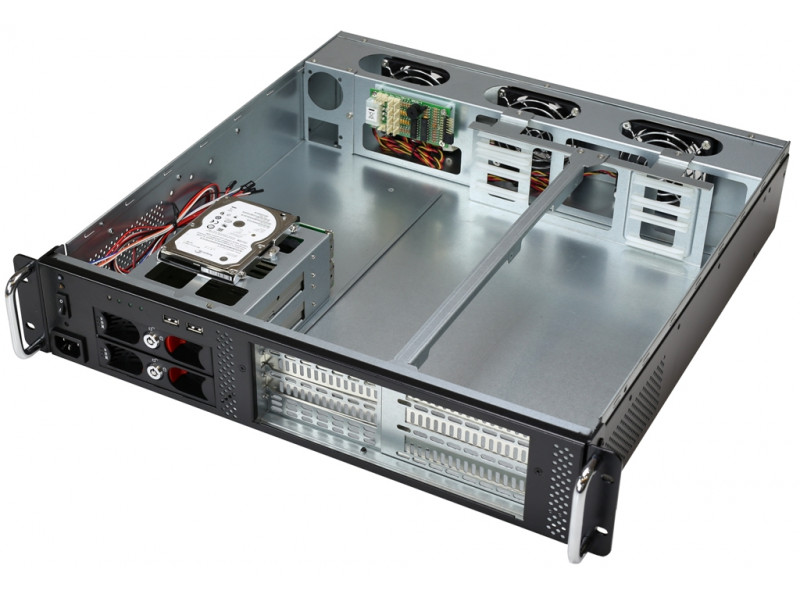

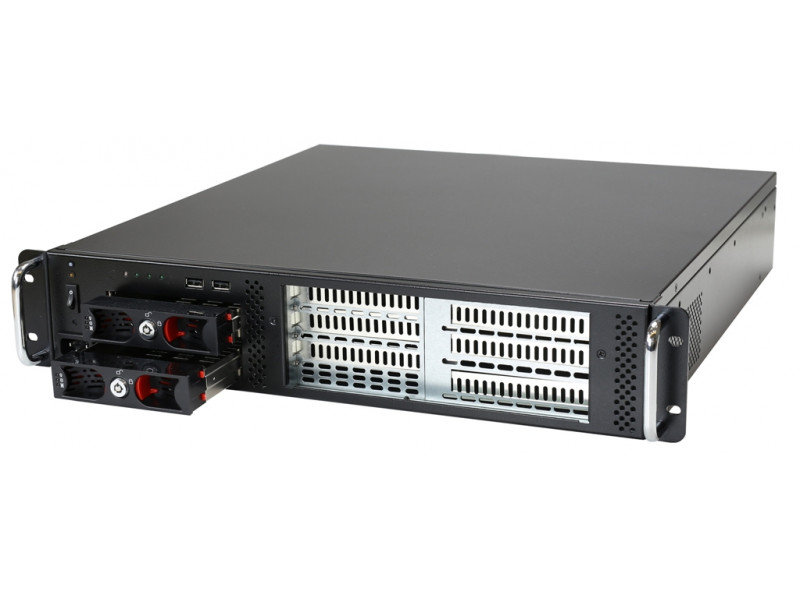

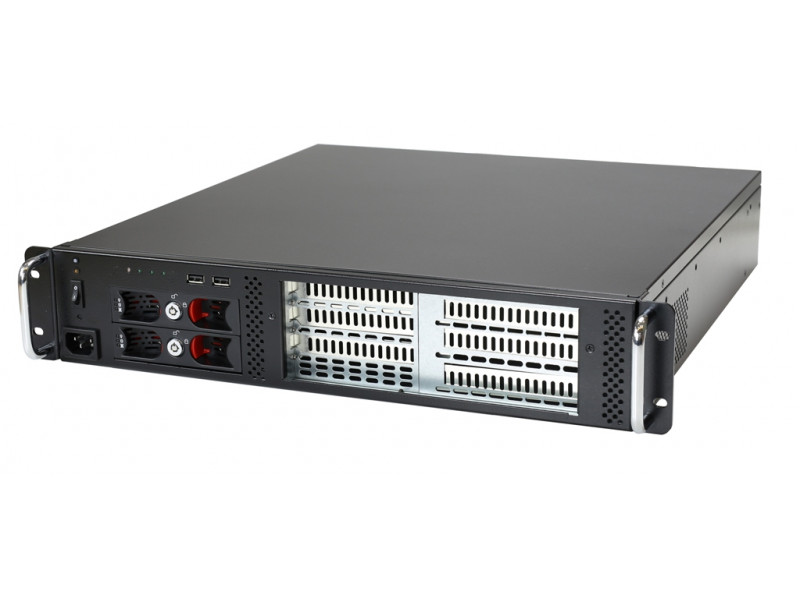

TAWA-T2925


2U Industrial Rackmount Chassis for PICMG SBC

· Design for easy access from the front panel
· Support up to 2 x 3.5" HDD tray
· Support up to 2 x 3.5" HDD + 1 x 2.5" HDD
· Excellent cooling with 3 x 8cm fan(2 ball bearing)
· Support 6 x expansion slot for PCIe or PCI card for each system



Specification

Front Panel
Power Switch 1
LED Indicators HDD x1; Power x1
Expansion Slot 6
USB Port 2
HDD/SSD # and type 3.5" x2
Thermal Monitor Switch and LED 1
Power Jack 1
Back Panel
System Cooling 8cm Fan(2 Ball Bearing) x3
Internal Structure
Memory Height Accept Standard Size
HDD/SSD # and type 2.5" x1
Mechanical & Processing
Dimensions W:19.00"(482.6mm) x D:18.10"(460.8mm) x H:3.46"(88mm)
Applied M/B Form Factor  PICMG SBC
Material Heavy Duty Cold-rolled Steel
Surface Black Wet Paint with Texture Coat
Colour Black / Customizable Colour
Power Solution Option
Flex ATX Power Supply Flex ATX 250/300/400watts Power Supply(AC 110~240V Auto-switching)
