TAWA-T3280
3U Industrial Rackmount Chassis for Dual Mini-ITX Systems

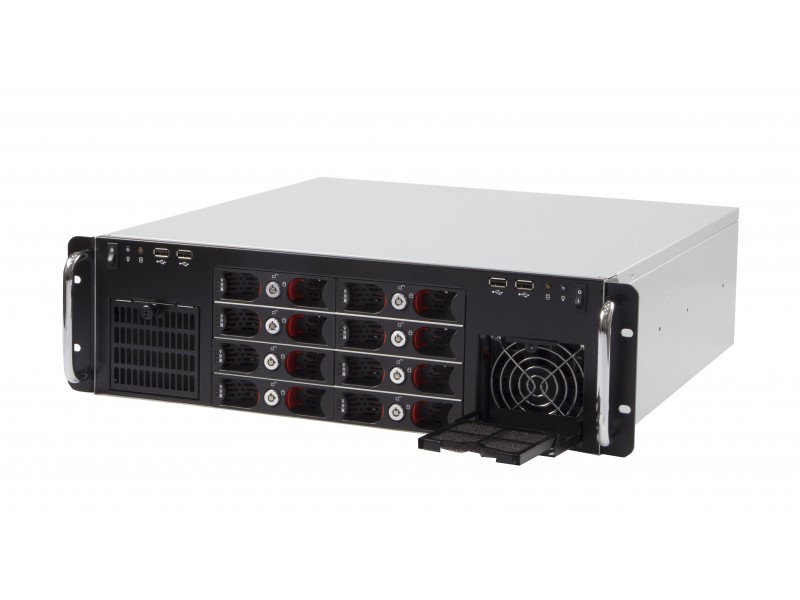

· Removable fan cage door design for easy access

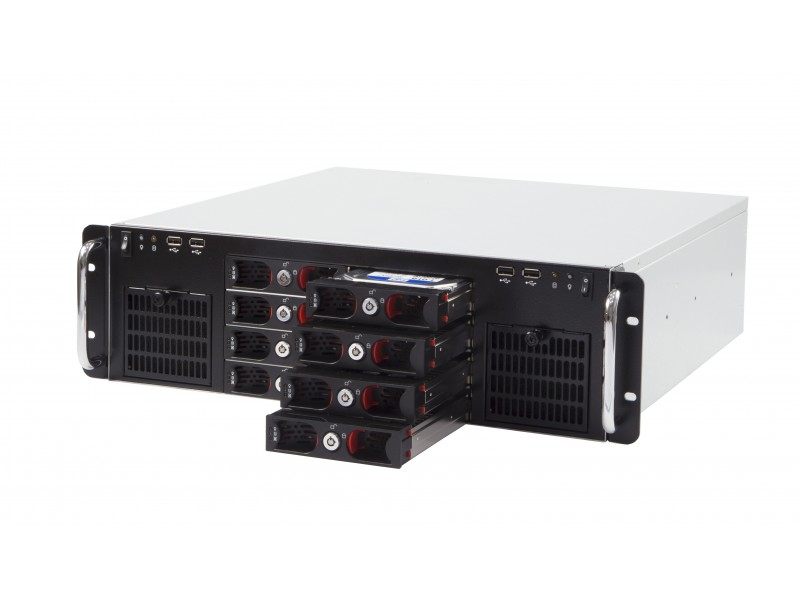

· Support 8 x 3.5" SATA tray
· Excellent cooling with 2 x 8cm fan + 4 x 6cm fan(2 ball bearing)
· Removable fan cage door design for easy access
· Support 8 x 3.5" SATA tray
· Excellent cooling with 2 x 8cm fan + 4 x 6cm fan(2 ball bearing)
Specification
| Front Panel | |
| Power Switch | 2 |
| LED Indicators | HDD x2; Power x2 |
| USB 2.0 Port | 2 x2 |
| HDD/SSD # and type | 3.5'' x8 |

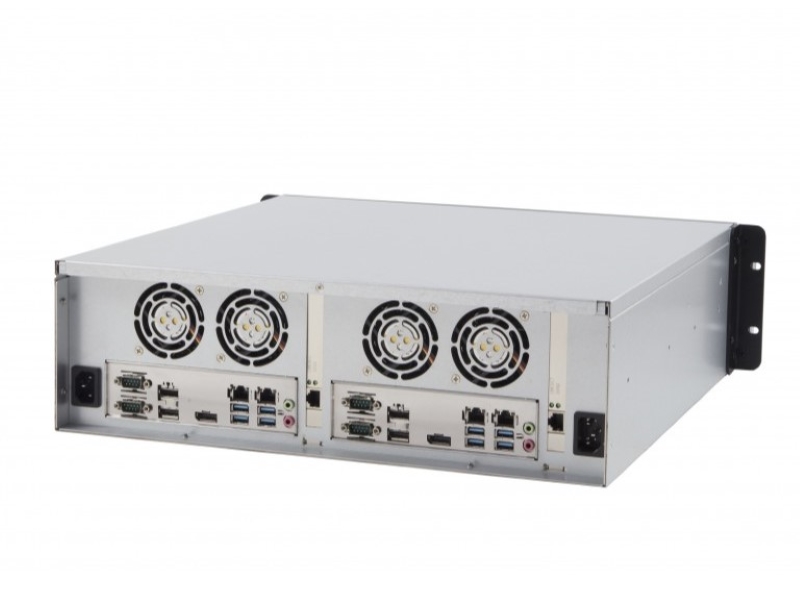

| Back Panel | |
| Standard I/O Shield | 2(Not Included) |
| Expansion Slot | 2 |
| AC Socket | 2 |
| Internal Structure | |
| System Cooling | 8cm Fan(2 Ball Bearing) x2 + 6cm Fan(2 Ball Bearing) x4 |
| Memory Height | Accept Standard Size |
| HDD/SSD # and type | 2.5" x2 + 3.5" x2 |
| Mechanical & Processing | |
| Dimensions | W:19.00"(482.6mm) x D:17.50"(446mm) x H:5.19"(132mm) |
| Applied M/B Form Factor | Mini-ITX |
| Material | Heavy Duty Cold-rolled Steel |
| Surface | Black Wet Paint with Texture Coat |
| Colour | Black / Customizable Colour |
| Power Solution Option | |
| Flex ATX Power Supply | Flex ATX 250/300/400 watts Power Supply (AC 110~240V auto-switching) |
