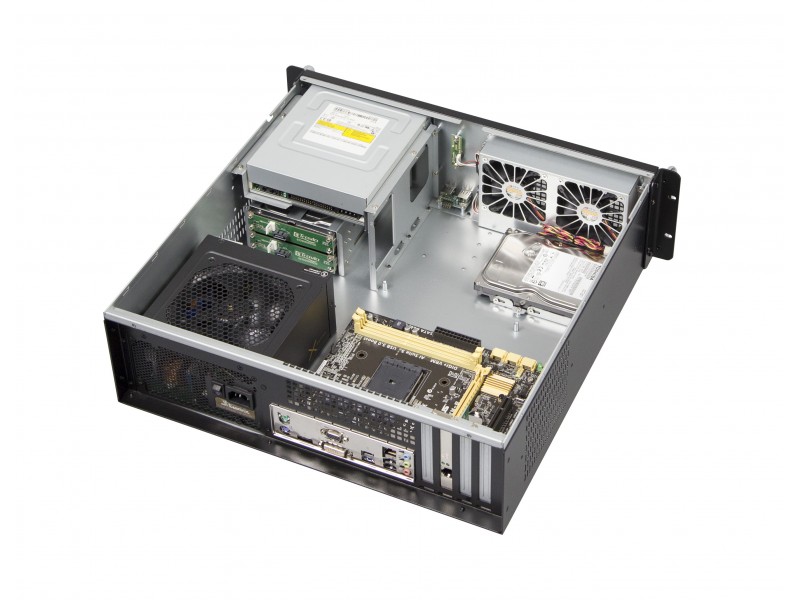

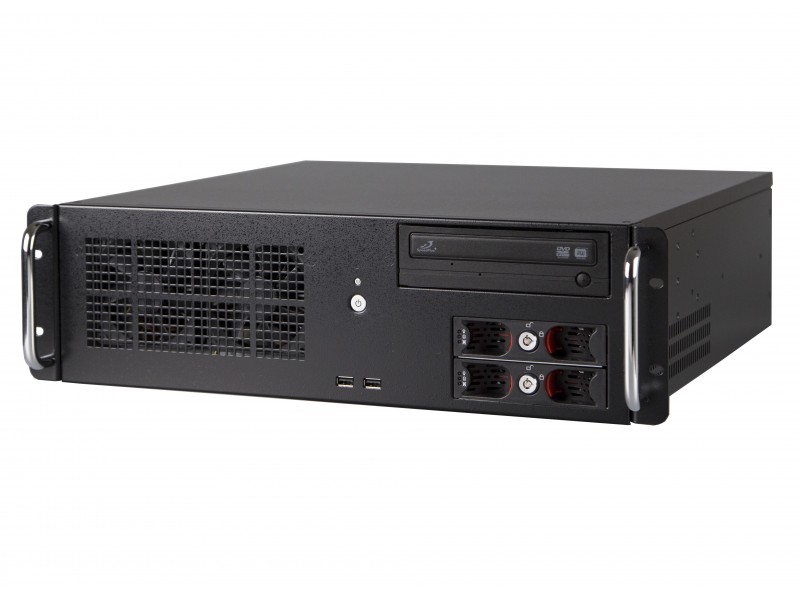

TAWA-T3321


3U Industrial Rackmount Chassis for Micro-ATX System

· Removable fan cage door design for easy access
· Support 1 x 5.25" ODD + 2 x 3.5" HDD
· Excellent cooling with 2 x 8cm fan(2 ball bearing)
· Support 4 x expansion slot for PCIe or PCI card
· Support PSII PSU or mini redundant PSU



Specification

Front Panel
Power Switch 1
LED Indicators HDD x1; Power x1
USB 2.0 Port 2
Slim Optical Drive Slot 1
HDD/SSD # and type 3.5" x4
Back Panel
Standard I/O Shield 1 (Not Included)
Expansion Slot 4
AC Socket 1
Internal Structure
System Cooling 8cm Fan(2 Ball Bearing) x3 + 6cm Fan(2 Ball Bearing) x2
Memory Height Accept Standard Size
HDD/SSD # and type 3.5" x3
Mechanical & Processing
Dimensions W:19.00"(482.6mm) x D:17.00"(432.2mm) x H:5.19"(132.0mm)
Applied M/B Form Factor  Micro-ATX
Material Heavy Duty Cold-rolled Steel
Surface Black Wet Paint with Texture Coat
Colour Black / Customizable Colour
Power Solution Option
PSII Power Supply PSII 300W/400W/500W/600W Power Supply
