TAWA-T3340
3U Industrial Rackmount Chassis for Micro-ATX System
· Removable fan cage door design for easy access
· Support 4 x 3.5" HDD
· Excellent cooling with 3 x 8cm fan + 2 x 6cm fan(2 ball bearing)
· Support 4 x expansion slot for PCIe or PCI card
· Removable fan cage door design for easy access
· Support 4 x 3.5" HDD
· Excellent cooling with 3 x 8cm fan + 2 x 6cm fan(2 ball bearing)
· Support 4 x expansion slot for PCIe or PCI card
Specification

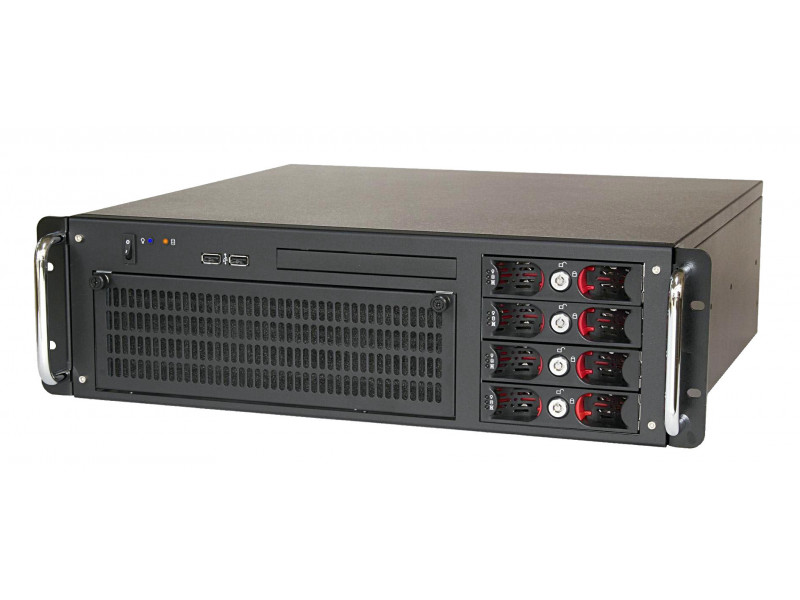

| Front Panel | |
| Power Switch | 1 |
| LED Indicators | HDD x1; Power x1 |
| USB 2.0 Port | 2 |
| Slim Optical Drive Slot | 1 |
| HDD/SSD # and type | 3.5" x4 |
| Back Panel | |
| Standard I/O Shield | 1 (Not Included) |
| Expansion Slot | 4 |
| AC Socket | 1 |

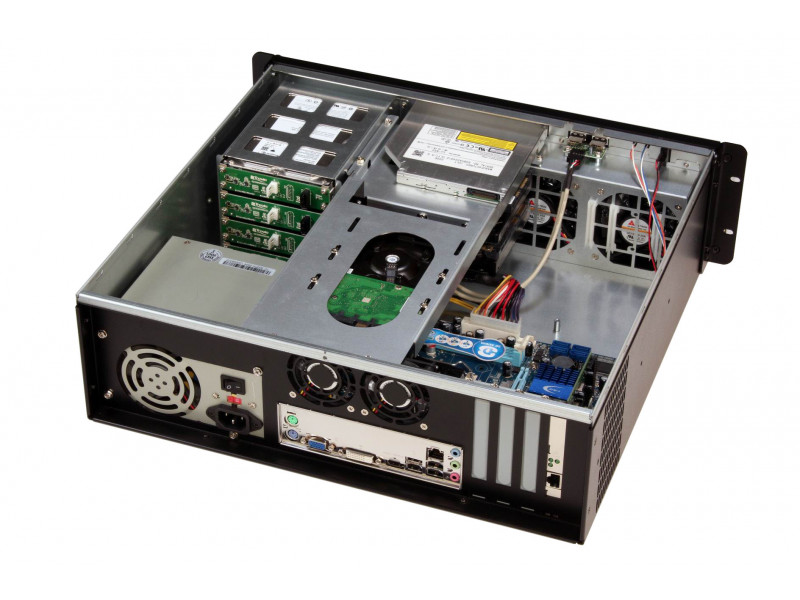

| Internal Structure | |
| System Cooling | 8cm Fan(2 Ball Bearing) x3 + 6cm Fan(2 Ball Bearing) x2 |
| Memory Height | Accept Standard Size |
| HDD/SSD # and type | 3.5" x3 |
| Mechanical & Processing | |
| Dimensions | W:19.00"(482.6mm) x D:16.30"(415mm) x H:5.19"(132mm) |
| Applied M/B Form Factor | Micro-ATX |
| Material | Heavy Duty Cold-rolled Steel |
| Surface | Black Wet Paint with Texture Coat |
| Colour | Black / Customizable Colour |
| Power Solution Option | |
| PSII Power Supply | PSII 300W/400W/500W/600W Power Supply |
