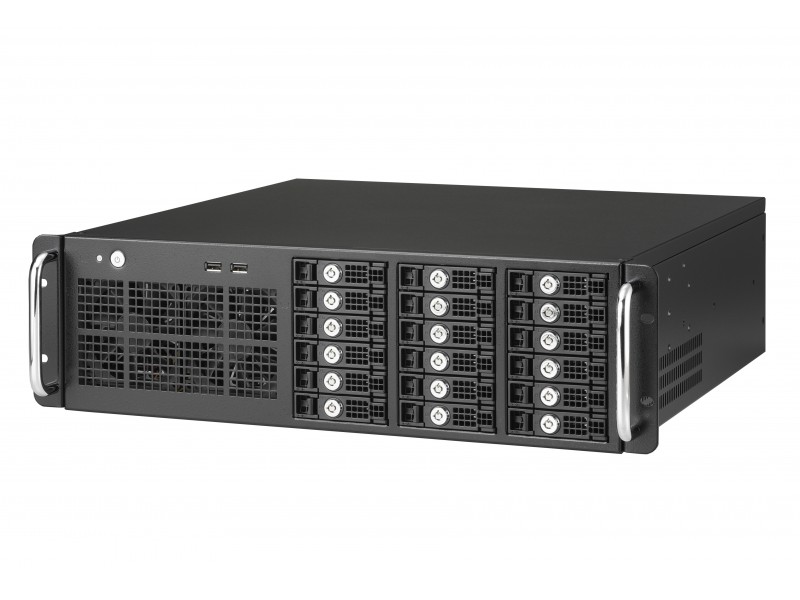

TAWA-T33G0
3U Industrial Rackmount Chassis for Micro-ATX System
· Support 18 x 2.5" HDD tray
· Excellent cooling with 2 x 8cm fan + 2 x 6cm fan(2 ball bearing)
· Support 4 x expansion slot for PCIe or PCI card
· Support PSII PSU or mini redundant PSU
· Support 18 x 2.5" HDD tray
· Excellent cooling with 2 x 8cm fan + 2 x 6cm fan(2 ball bearing)
· Support 4 x expansion slot for PCIe or PCI card
· Support PSII PSU or mini redundant PSU
Specification
| Front Panel | |
| Power Switch | 1 |
| LED Indicators | HDD x1; Power x1 |
| HDD/SSD # and type | Full Height 2.5" x8 |
| USB Port | 18 |
| System cooling | 8cm Fan(2 Ball Bearing) x2 |
| Back Panel | |
| Expansion Slot | 4 |
| AC Socket | 1 |

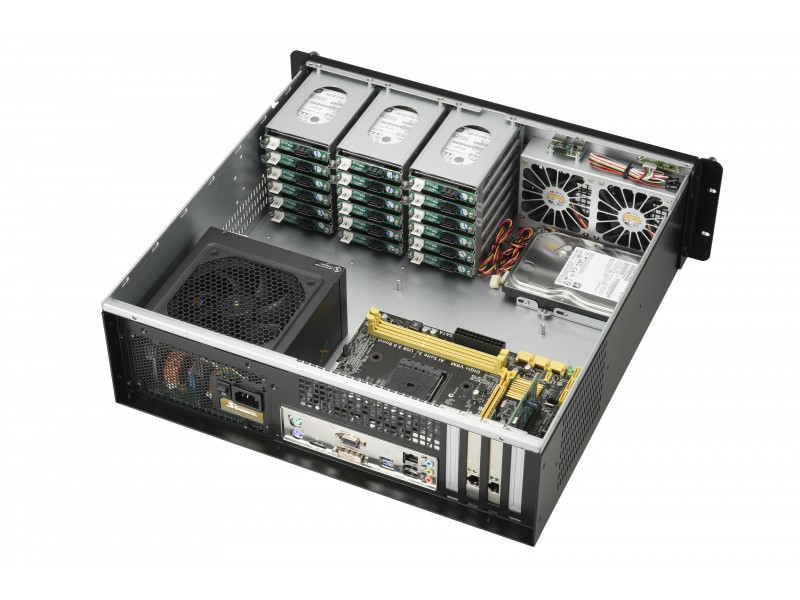

| Internal Structure | |
| Memory Height | Accept Standard Size |
| HDD/SSD # and type | 3.5" x1 |
| System cooling | 6cm Fan(2 Ball Bearing) x2 |
| Mechanical & Processing | |
| Dimensions | W:19.00"(482.6mm) x D:17.00"(432.2mm) x H:5.20"(132.0mm) |
| Applied M/B Form Factor | Micro-ATX |
| Material | SGCC |
| Surface | Black Wet Paint with Texture Coat |
| Colour | Black / Customizable Colour |
| Power Solution Option 1 | |
| Internal Power Supply | PSII Power Supply |
| Power Solution Option 2 | |
| Redundant Power Supply | Mini-Redundant Power Supply |
