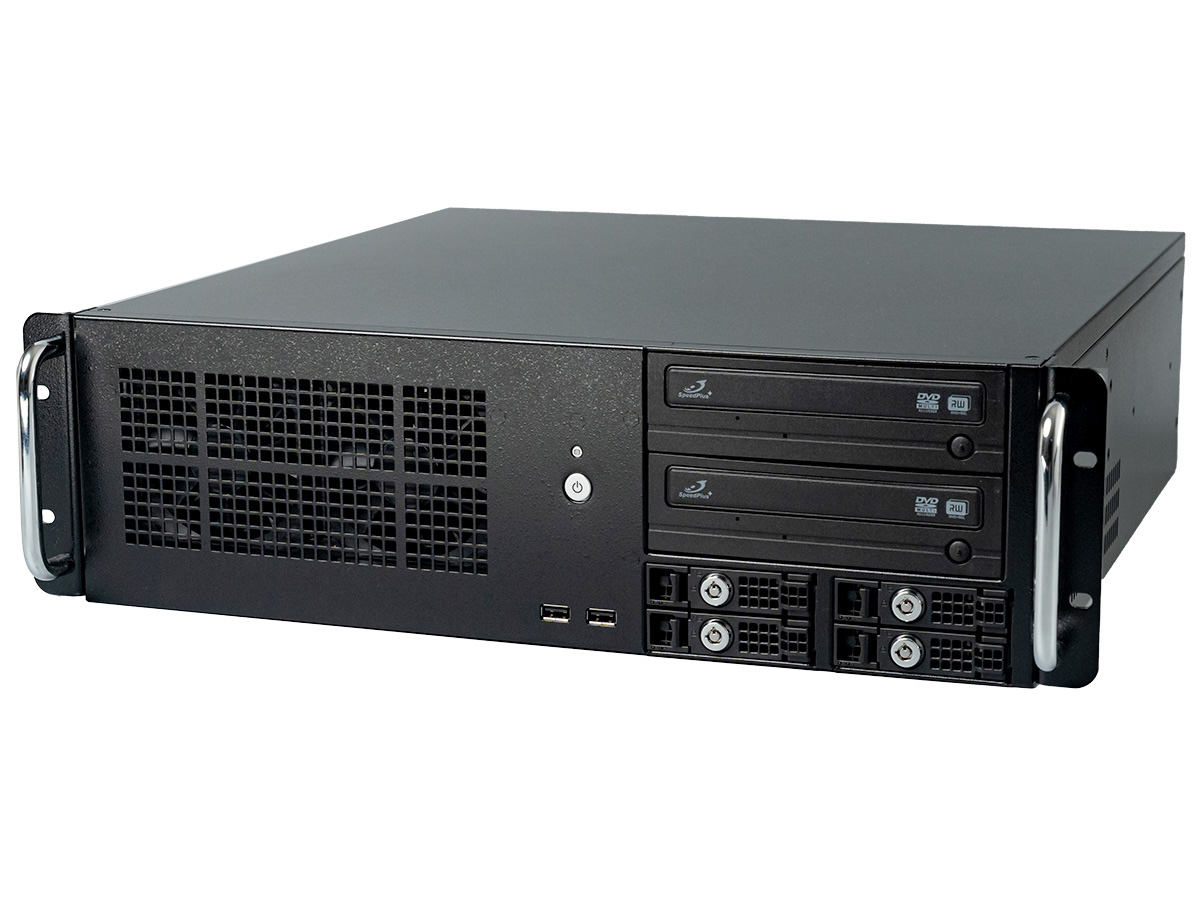

TAWA-T3442
3U Industrial Rackmount Chassis for ATX MB
· Support 4 x 2.5" SATA tray(full height) + 2 x 5.25" ODD
· Support 7 x expansion slot
· Excellent cooling with 2 x 8cm fan(2 ball bearing)
· Support Flex PSU / 2U Redundant PSU
· Support 4 x 2.5" SATA tray(full height) + 2 x 5.25" ODD
· Support 7 x expansion slot
· Excellent cooling with 2 x 8cm fan(2 ball bearing)
· Support Flex PSU / 2U Redundant PSU
Specification
| Front Panel | |
| Power Switch | 1(with LED indicator) |
| LED Indicators | HDD x1 |
| 5.25" ODD | 2 |
| HDD/SSD # and type | 2.5" x4(Full-height) |
| USB Port | 2 |
| System cooling | 8cm Fan(2 Ball Bearing) x2 |
| Back Panel | |
| Expansion Slot | 7 |
| Standard I/O Shield | 1(Not included) |
| Internal Structure | |
| Memory Height | Accept Standard Size |
| HDD/SSD # and type | 3.5" x1 |
| Mechanical & Processing | |
| Dimensions | W:17.00"(431.8mm) x D:19.60"(496.8mm) x H:5.20"(132.0mm) |
| Applied M/B Form Factor | ATX |
| Material | SGCC |
| Surface | Black Wet Paint with Texture Coat |
| Colour | Black / Customizable Colour |
| Power Solution Option 1 | |
| FLEX Power Supply | 250W/300W/400W/600W |
| Power Solution Option 2 | |
| Redundant Power Supply | 2U Redundant Power Supply 300W/500W/800W |
