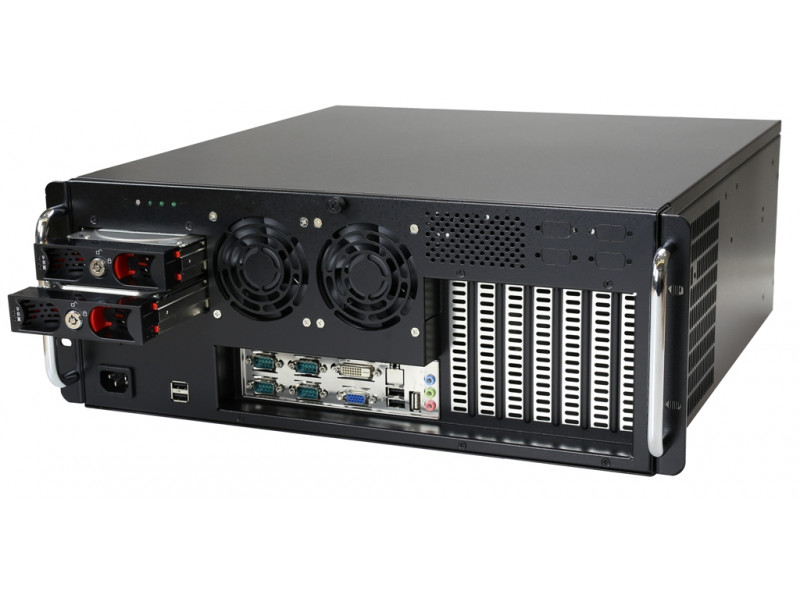

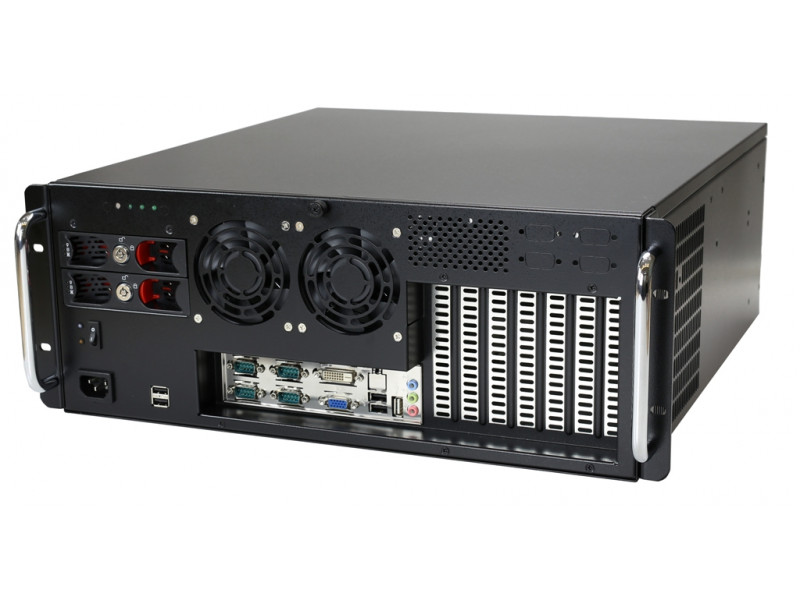

Front Panel |
Power Switch |
1 |
LED Indicators |
HDD x1; Power x1 |
Expansion Slot |
7 |
USB Port |
2 |
HDD/SSD # and type |
3.5" x2 |
COM port |
4 |
System cooling |
8cm Fan(2 Ball Bearing) x2 |
Thermal Monitor Switch and LED |
1 |
Power Jack |
1 |
Standard I/O shield |
1(Not Included) |

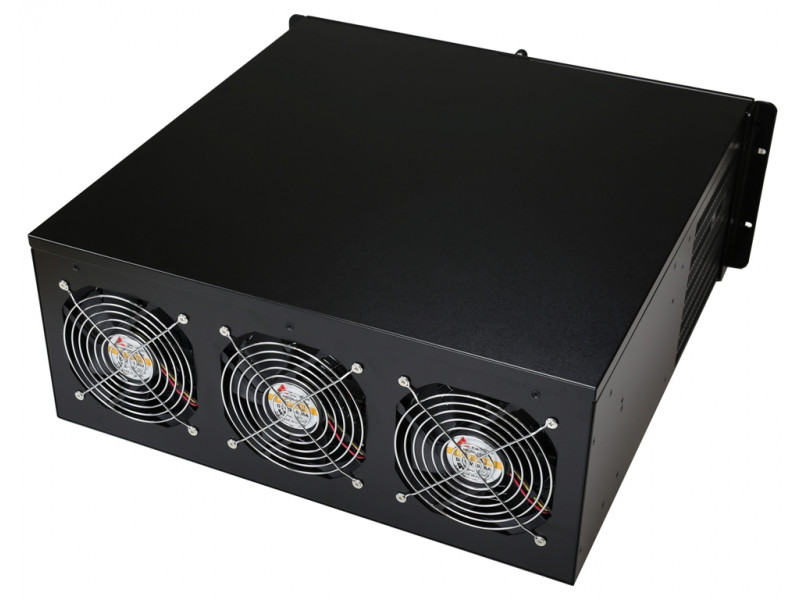

Back Panel |
System Cooling |
12cm Fan(2 Ball Bearing) x3 |

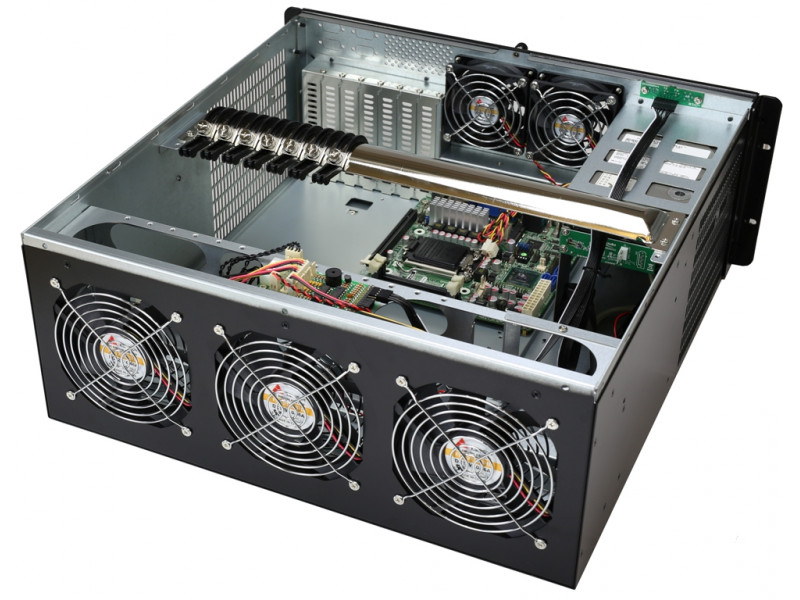

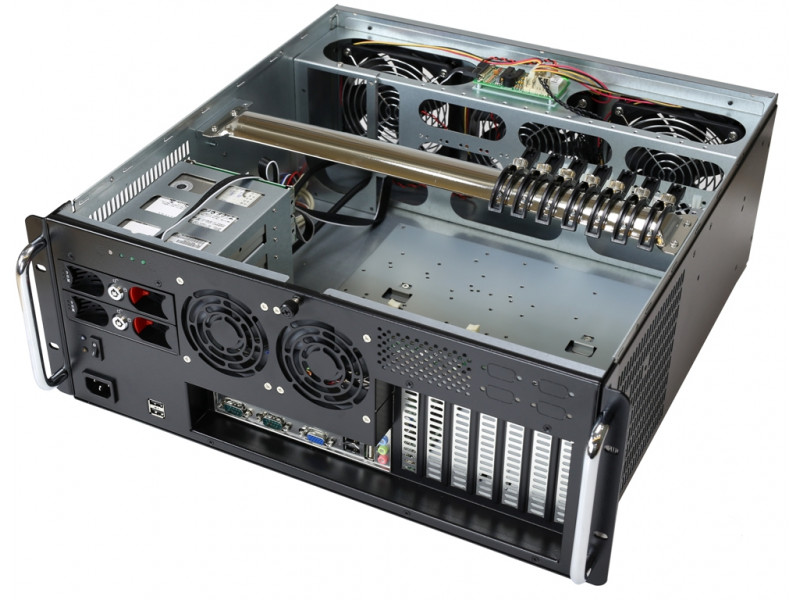

Internal Structure |
Memory Height |
Accept Standard Size |
Mechanical & Processing |
Dimensions |
W:19.00"(482.6mm) x D:18.10"(460.8mm) x H:6.92"(175.8mm) |
Applied M/B Form Factor |
Server Board |
Material |
Heavy Duty Cold-rolled Steel |
Surface |
Black Wet Paint with Texture Coat |
Colour |
Black / Customizable Colour |
Power Solution Option |
PSII Power Supply |
PSII 300W/400W/500W Power Supply |
