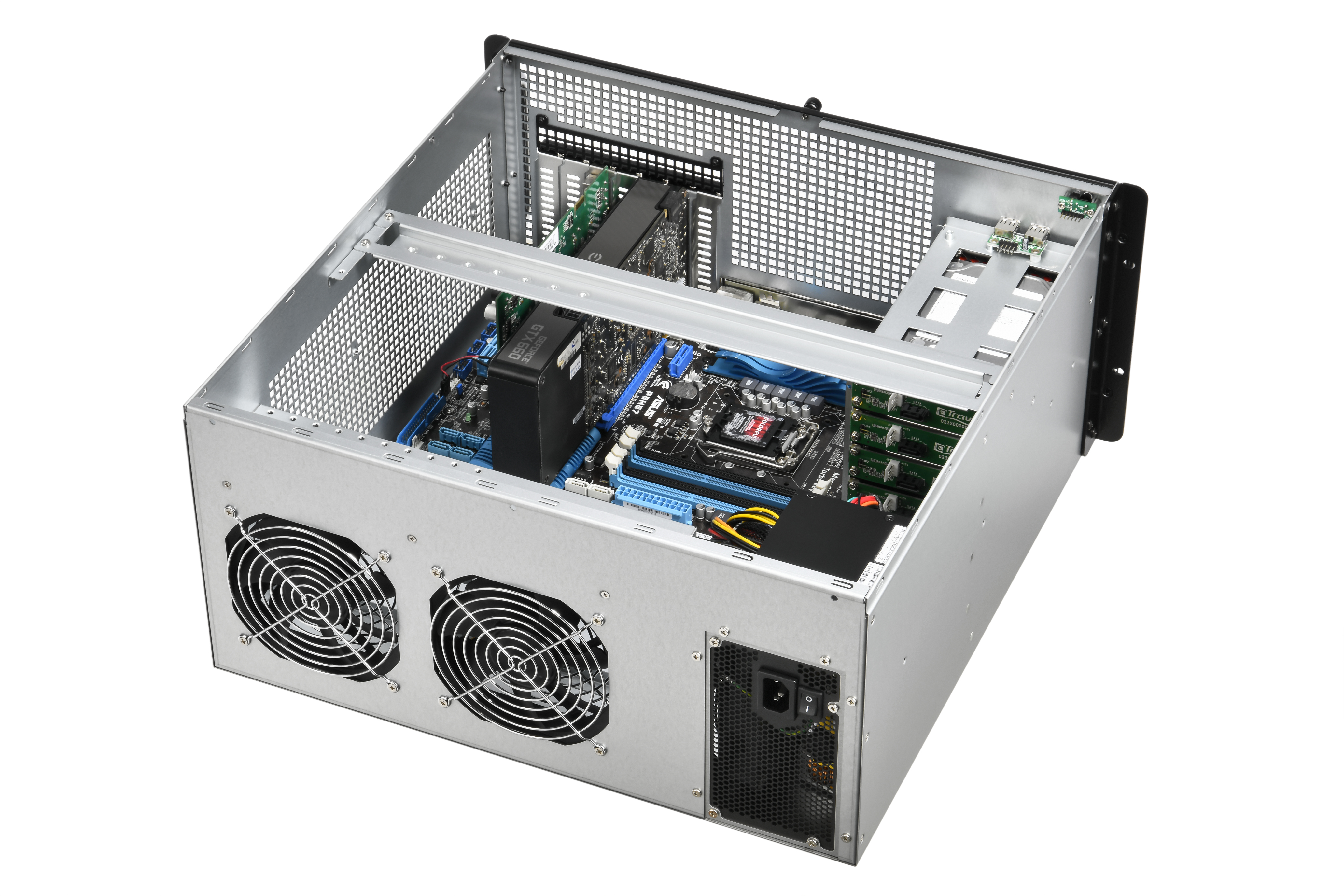

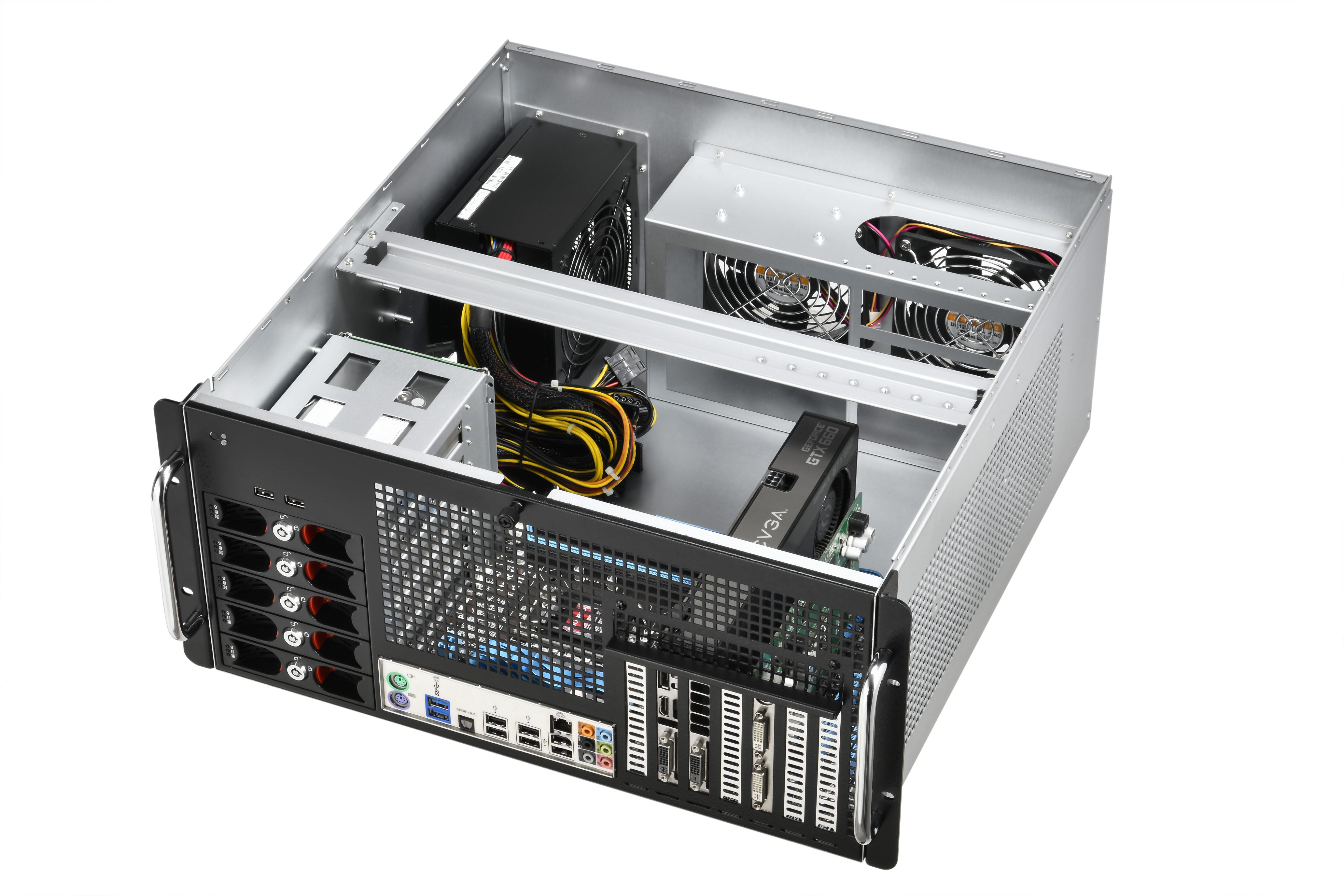

TAWA-T5850
5U Industrial Rackmount Chassis for E-ATX MB
· Support 5 x 3.5" SATA tray(full height)
· Support 7 x expansion slot
· Excellent cooling with 2 x 12cm fan(2 ball bearing)
· Support Mini Redundant PSU / CRPS PSU / PSII PSU
· Support 5 x 3.5" SATA tray(full height)
· Support 7 x expansion slot
· Excellent cooling with 2 x 12cm fan(2 ball bearing)
· Support Mini Redundant PSU / CRPS PSU / PSII PSU
Specification

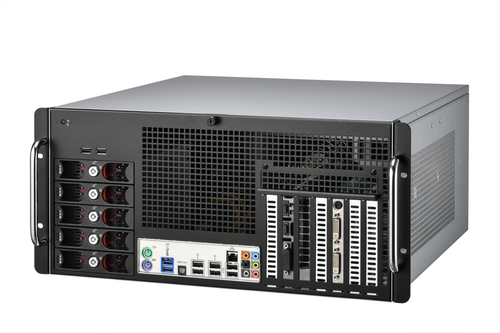

| Front Panel | |
| Power Switch | 1 |
| LED Indicators | HDD x1; Power x1 |
| HDD/SSD # and type | 3.5" x5 |
| Standard I/O Shield | 1(Not Included) |
| USB Port | 2 |
| Expansion Slot | 7 |
| Back Panel | |

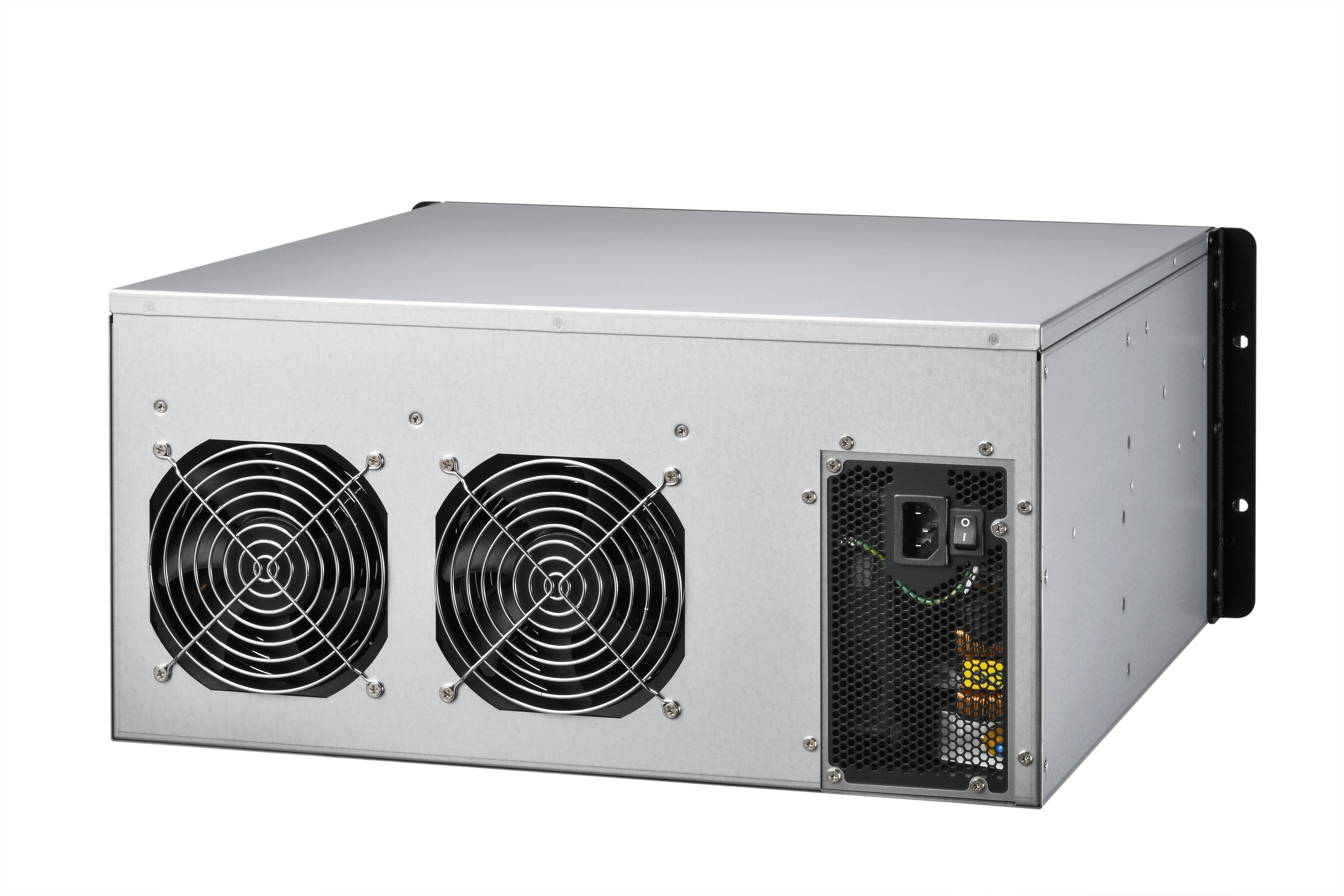

| System Cooling | 12cm Fan(2 Ball Bearing) x2 |
| Internal Structure | |
| Memory Height | Accept Standard Size |
| Mechanical & Processing | |
| Dimensions | W:18.90(480.0mm) x D:17.7"(450.0mm) x H:8.35"(212.2mm) |
| Applied M/B Form Factor | E-ATX |
| Material | Heavy Duty Cold-rolled Steel |
| Surface | Black Wet Paint with Texture Coat |
| Colour | Black / Customizable Colour |
| Power Solution Option | |
| Power Supply | PSII PSU / Mini-redundant PSU / CRPS PSU |
