TAWA-T4420
4U Industrial Rackmount Chassis for ATX MB
· Support 18 x 3.5" HDD tray + 2 x 2.5" HDD tray
· Support 8 x expansion slot for PCIe or PCI card
· Excellent cooling with 3 x 12cm fan(2 ball bearing)
· Support 18 x 3.5" HDD tray + 2 x 2.5" HDD tray
· Support 8 x expansion slot for PCIe or PCI card
· Excellent cooling with 3 x 12cm fan(2 ball bearing)
Specification

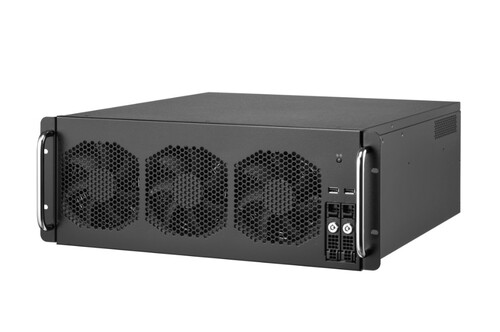

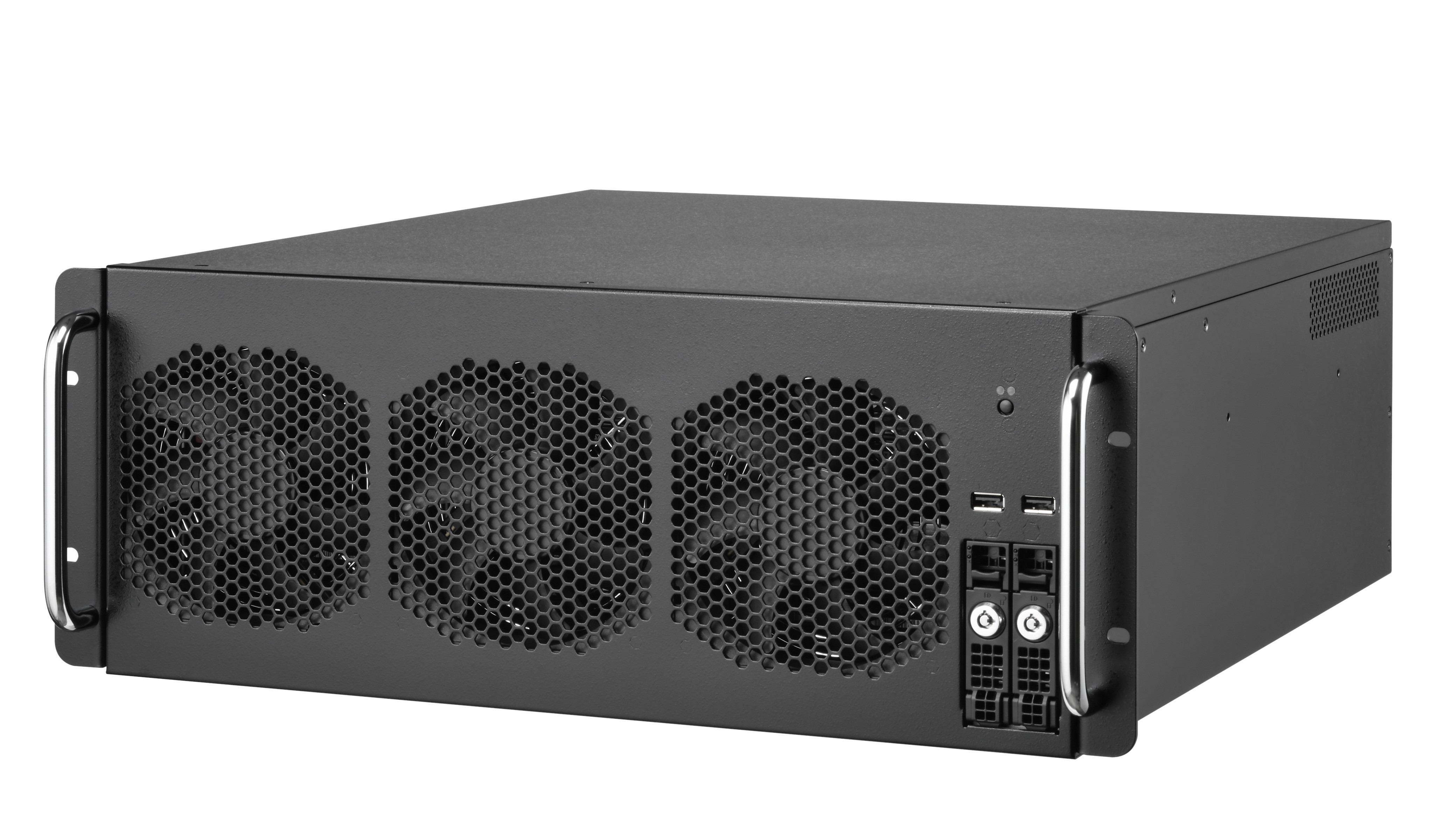

| Front Panel | |
| Power Switch | 1 |
| LED Indicators | HDD x1; Power x1 |
| USB Port | 2 |
| HDD/SSD # and type | 3.5" Tray x18 + 2.5" Tray x2 |

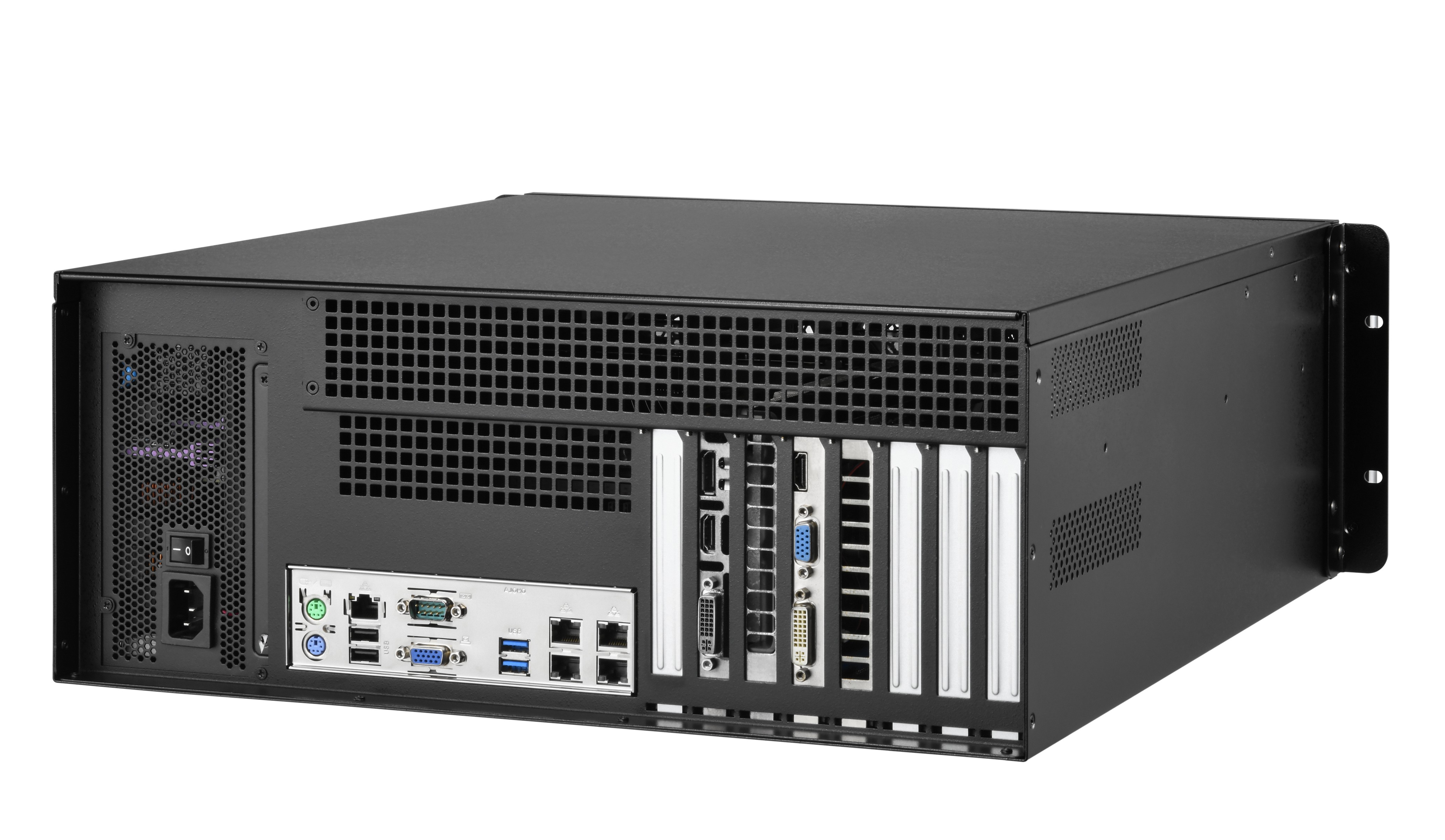

| Back Panel | |
| Standard I/O Shield | 1(Not Included) |
| Expansion Slot | 8 |
| PSII Power Socket | 1 |

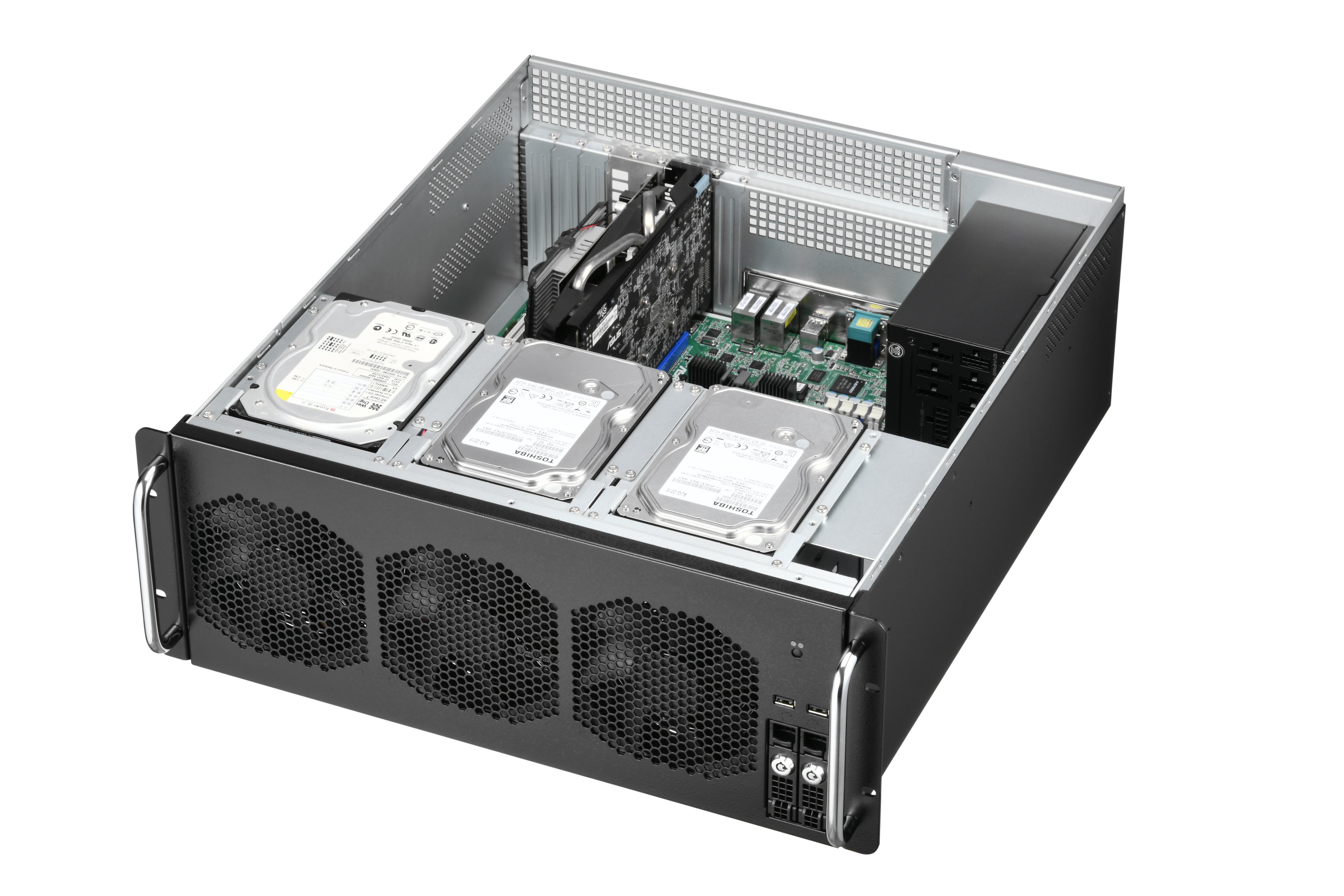

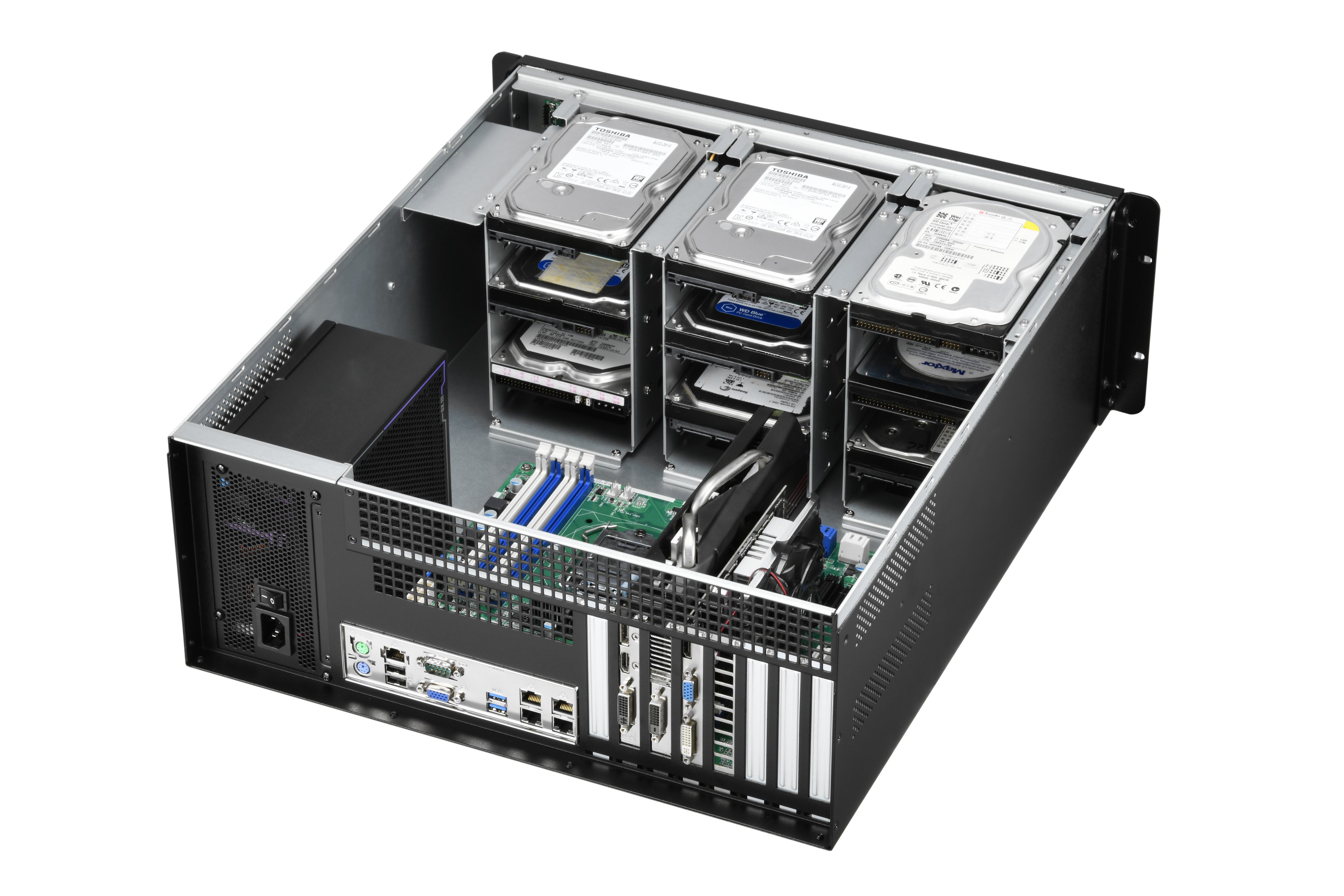

| Internal Structure | |
| System Cooling | 12cm Fan(2 Ball Bearing) x3 |
| Memory Height | Accept Standard Size |
| Mechanical & Processing | |
| Dimensions | W:17.00"(431.8mm) x D:19.55"(496.6mm) x H: 6.92"(176mm) |
| Applied M/B Form Factor | ATX |
| Material | Heavy Duty Cold-rolled Steel |
| Surface | Black Wet Paint with Texture Coat |
| Colour | Black / Customizable Colour |
| Power Solution Option | |
| PSII Power Supply | PSII 1000W Power Supply |
