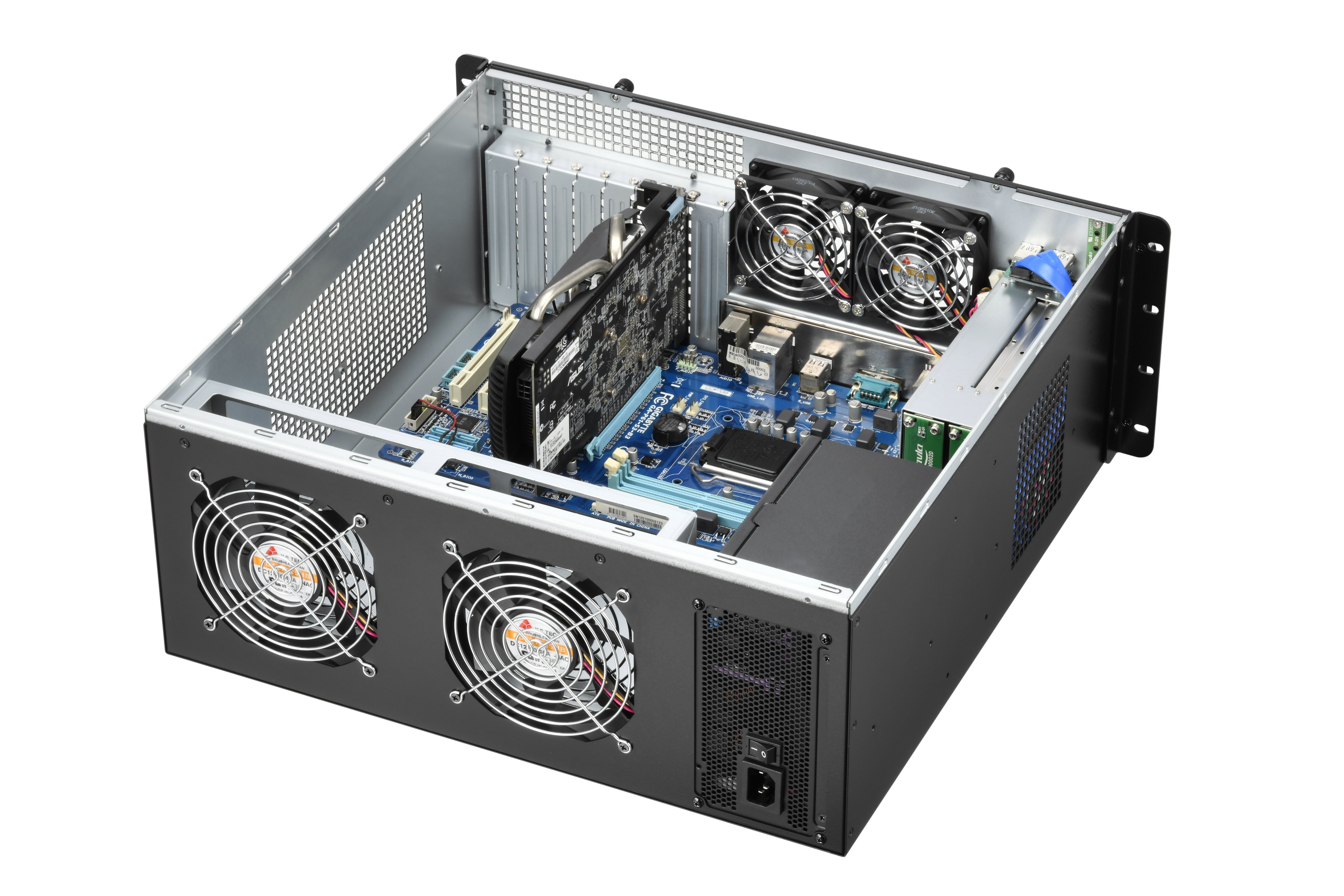

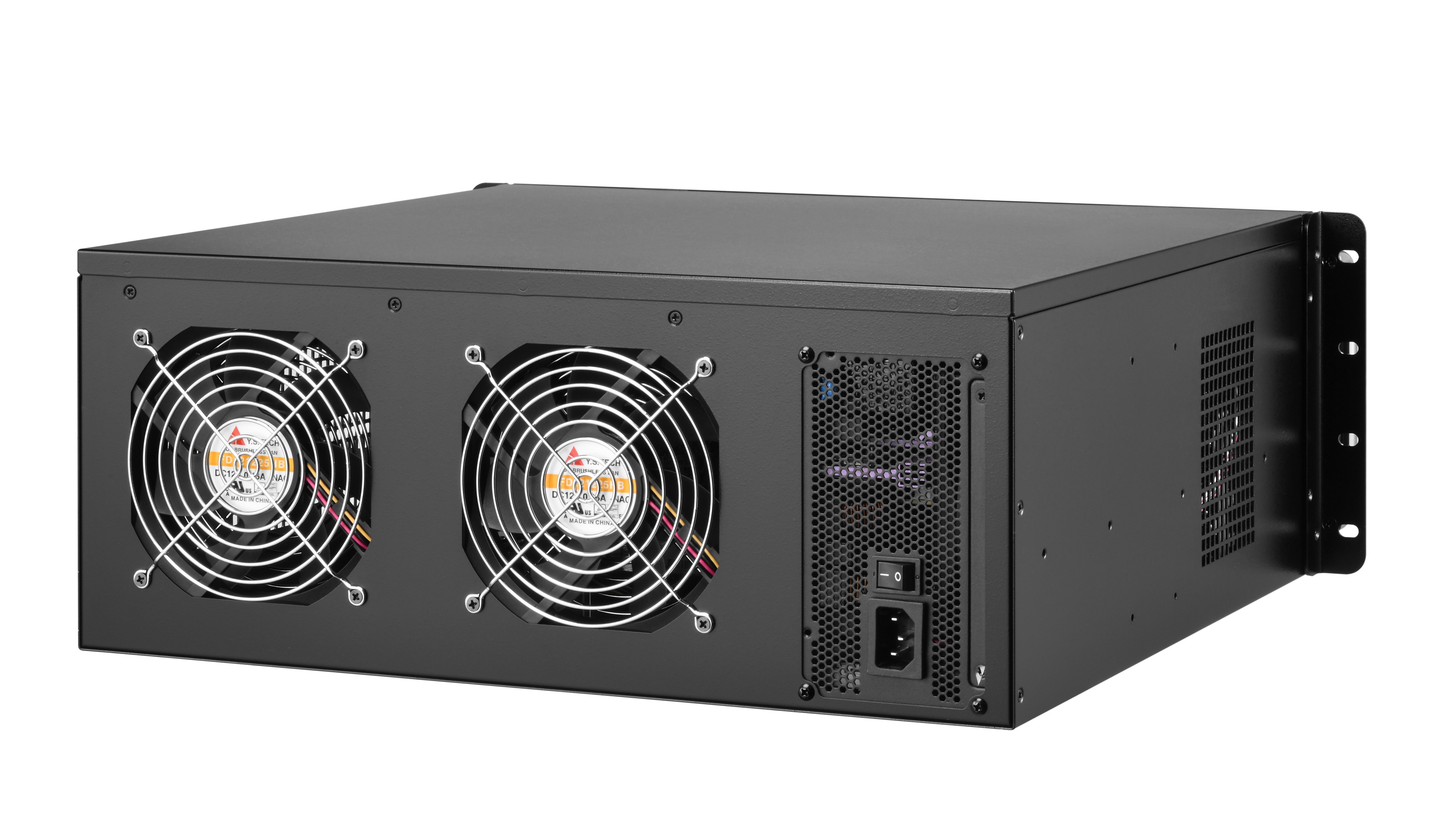

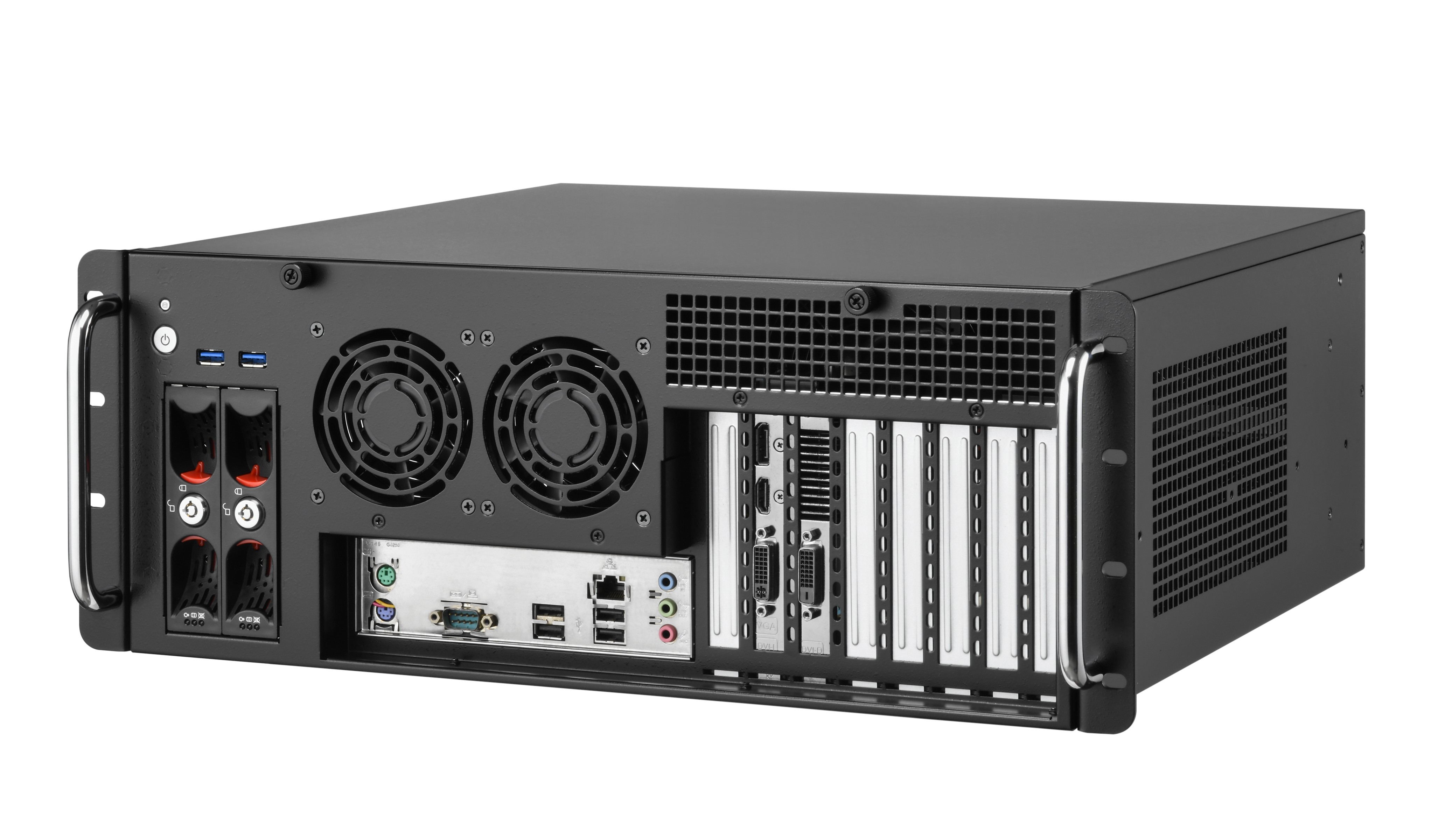

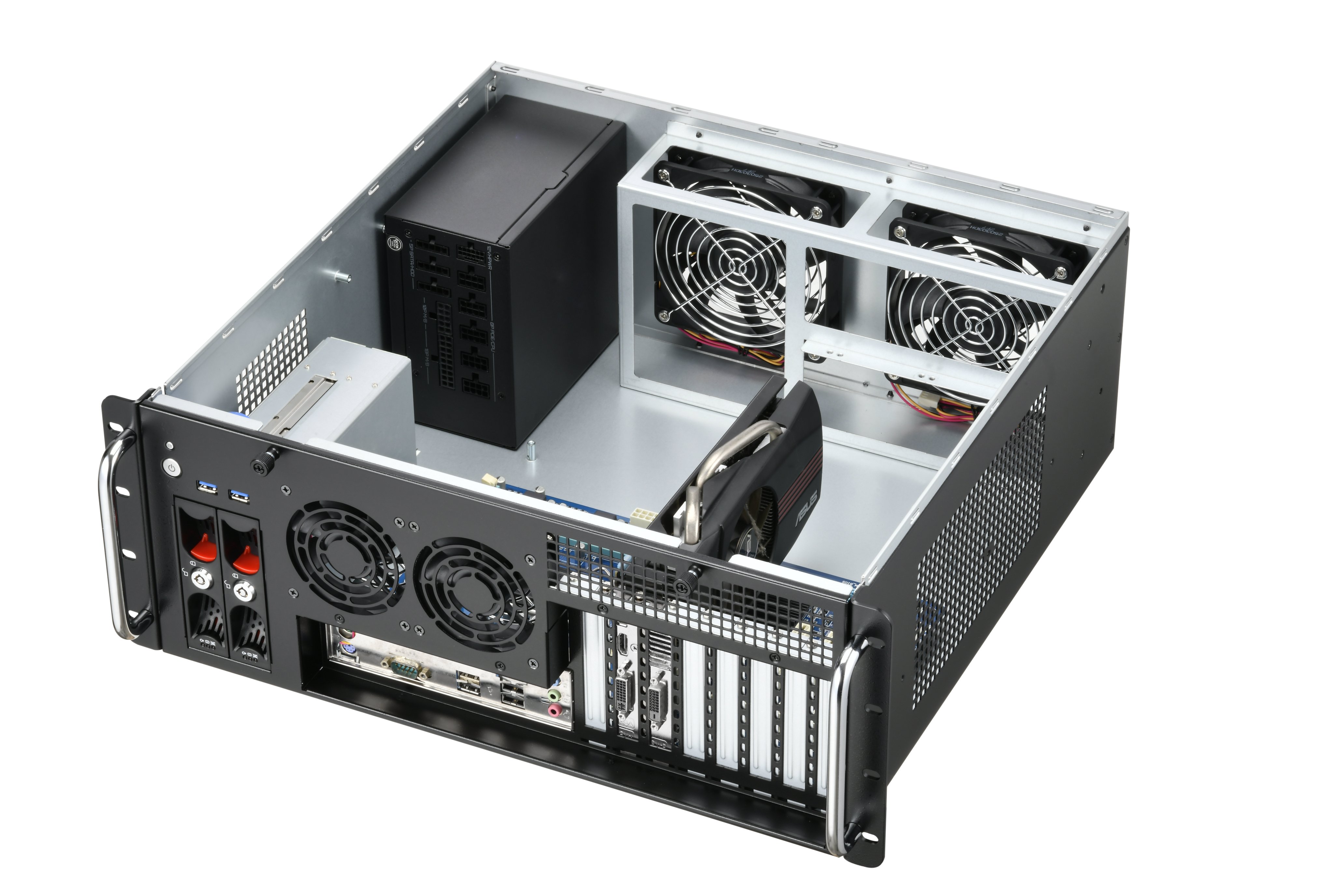

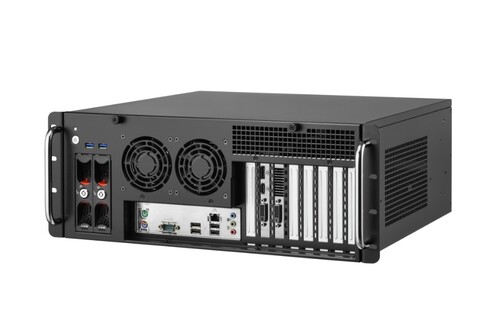

TAWA-T4922
4U Industrial Rackmount Chassis for ATX MB
· Easy front-panel access to the motherboard
· Support 2 x 3.5" HDD tray
· Supports up to 8 expansion slots
· Excellent cooling with 2 x 12cm fan + 2 x 8cm fan(2 ball bearing)
· Easy front-panel access to the motherboard
· Support 2 x 3.5" HDD tray
· Supports up to 8 expansion slots
· Excellent cooling with 2 x 12cm fan + 2 x 8cm fan(2 ball bearing)
Specification
| Front Panel | |
| Power Switch | 1 |
| LED Indicators | HDD x1; Power x1 |
| Expansion Slot | 8 |
| USB Port | 2 |
| HDD/SSD # and type | 3.5" x2 |
| System cooling | 8cm Fan(2 Ball Bearing) x2 |
| Standard I/O shield | 1(Not Included) |
| Back Panel | |
| System Cooling | 12cm Fan(2 Ball Bearing) x2 |
| Internal Structure | |
| Memory Height | Accept Standard Size |
| Mechanical & Processing | |
| Dimensions | W:19.00"(482.0mm) x D:17.00"(430.8mm) x H:6.93"(176.0mm) |
| Applied M/B Form Factor | ATX |
| Material | Heavy Duty Cold-rolled Steel |
| Surface | Black Wet Paint with Texture Coat |
| Colour | Black / Customizable Colour |
| Power Solution Option | |
| PSII Power Supply | PSII 500W/800W/1000W Power Supply |
| Mini-Redundant PSU | 300W/500W/800W |
