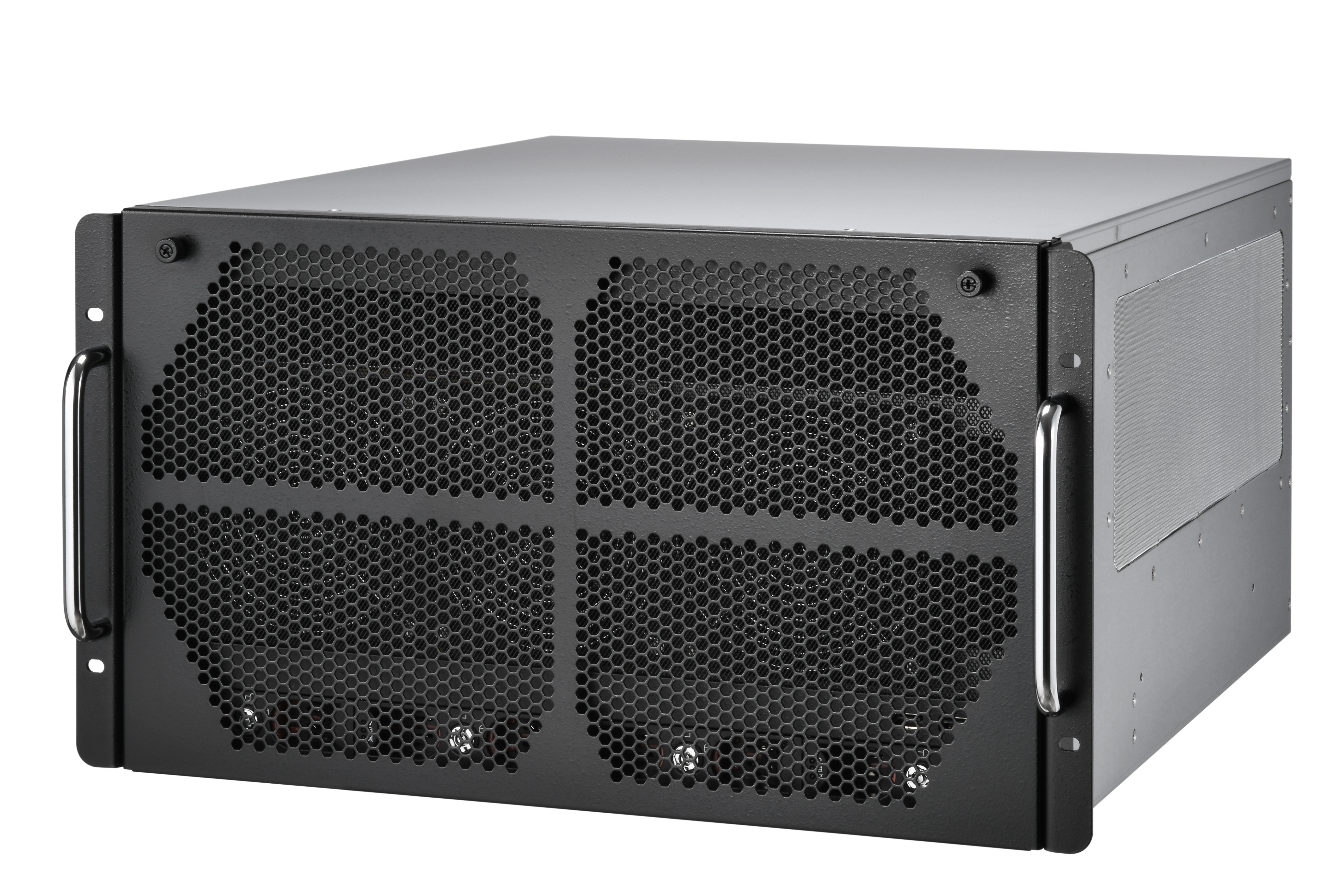

TAWA-T6Q40
6U Industrial Rackmount Chassis for 12"x13" Server Board
· Support 3 x close loop liquid cooler and radiator
· Support dual PSII PSU / Mini redundant PSU
· Support expansion card with maximum lengthof 360mm
· Removable fan cage door design for easy access
· Excellent cooling with 3 x 12cm fan(2 ball bearing) on front panel
· Support 3 x close loop liquid cooler and radiator
· Support dual PSII PSU / Mini redundant PSU
· Support expansion card with maximum lengthof 360mm
· Removable fan cage door design for easy access
· Excellent cooling with 3 x 12cm fan(2 ball bearing) on front panel
Specification
| Front Panel | |
| Power Switch | 1 |
| LED Indicators | HDD x1; Power x1 |
| USB Port | 2 |
| HDD/SSD # and type | 3.5" x4 |

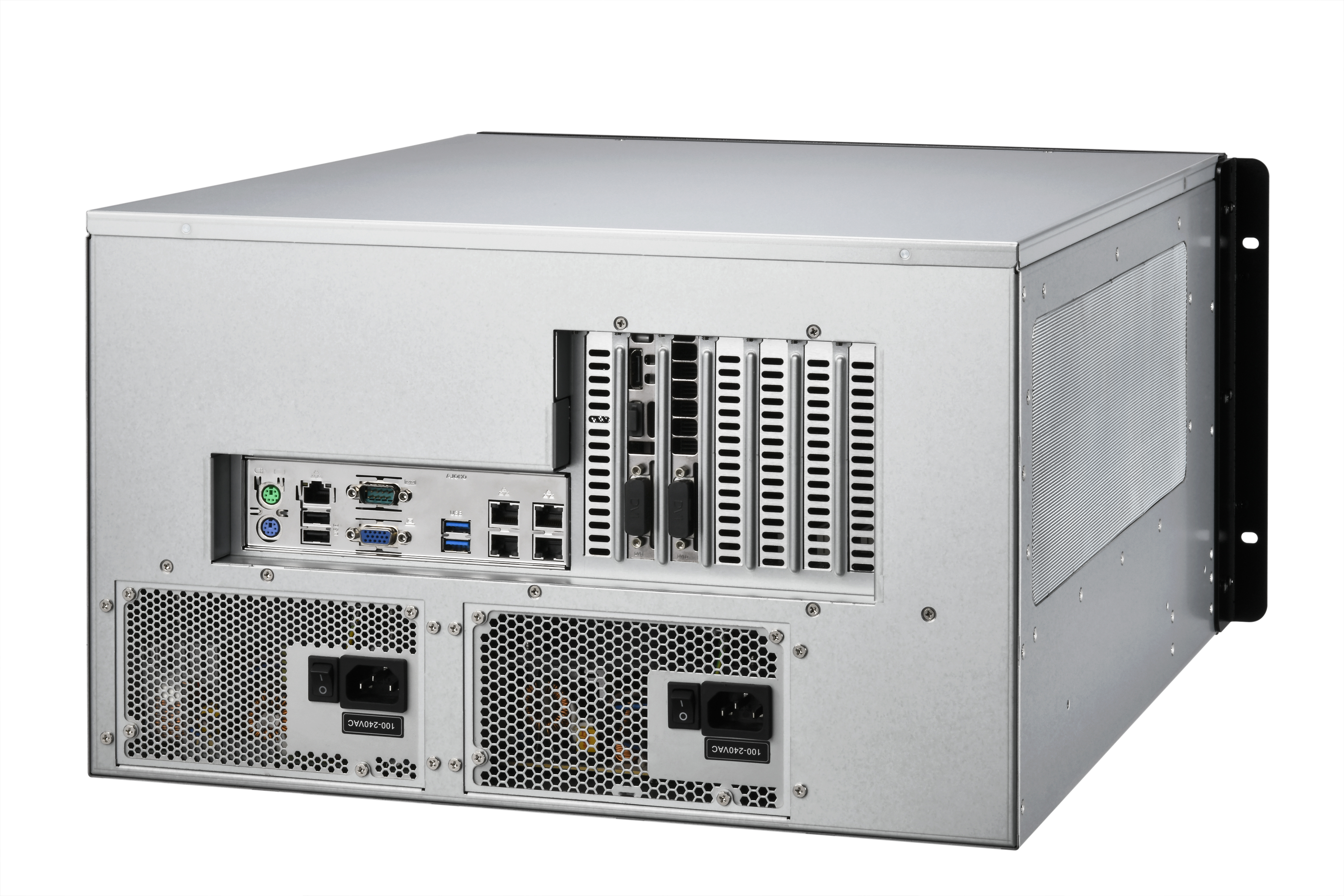

| Back Panel | |
| Standard I/O Shield | 1 (Not Included) |
| Expansion Slot | 7 |
| Liquid Cooler Support | |
| Radiator Support | Front: 120mm / 240mm / 360mm Left: 120mm / 240mm / 360mm Right: 120mm / 240mm / 360mm |
| Internal Structure | |
| System Cooling | 12cm Fan(2 Ball Bearing) x3 |
| Memory Height | Accept Standard Size |
| HDD/SSD # and type | 2.5" x1 |
| Mechanical & Processing | |
| Dimensions | W:19.00"(482.0mm) x D:21.14"(537.0mm) x H:10.45"(265.4mm) |
| Applied M/B Form Factor | Server Board |
| Material | Heavy Duty Cold-rolled Steel |
| Surface | Black Wet Paint with Texture Coat |
| Colour | Black / Customizable Colour |
| Power Solution | |
| Power Supply Option | PSII Power Supply / Mini-redundant PSU |
