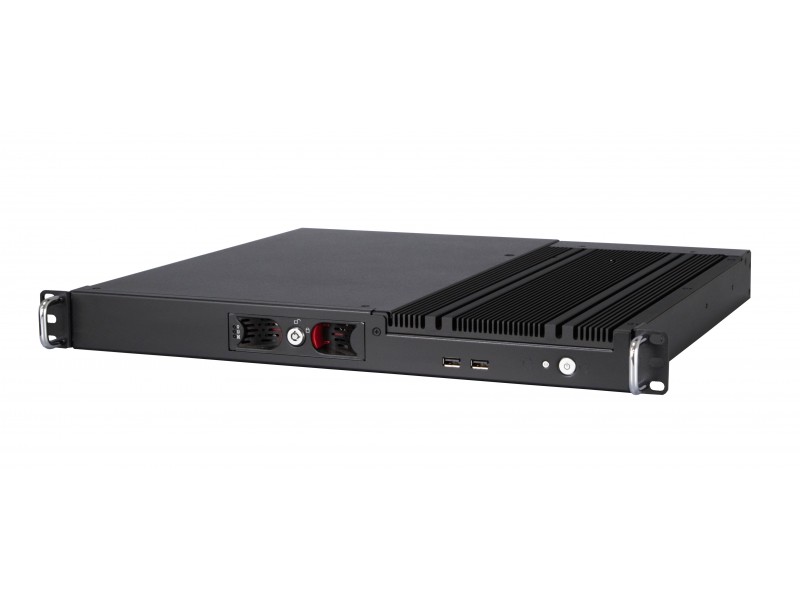

FU-F1110
1U Rackmount Fanless Chassis for Mini-ITX
· Silent, dust-free & energy-efficient operation
· Extensive aluminum-made heatsink(for CPU: TDP 35W)
· Innovative thermal cooling: Combination of thermal pads and copper thermal blocks
· Support 3.5" hot-swap x1
· Support expansion slot x1
· Silent, dust-free & energy-efficient operation
· Extensive aluminum-made heatsink(for CPU: TDP 35W)
· Innovative thermal cooling: Combination of thermal pads and copper thermal blocks
· Support 3.5" hot-swap x1
· Support expansion slot x1
Specification
| Front Panel | |
| Power Switch | 1 |
| LED Indicators | HDD x1; Power x1 |
| USB 2.0 Port | 2 |
| Audio In/Out | 1 |
| HDD/SSD # and type | 2.5'' x2 |
| Compact Flash Cutoff | 1 |
| Back Panel | |
| Standard I/O Shield | 1(Not Included) |
| Expansion Slot | 1 |
| DB9 port | 2 |

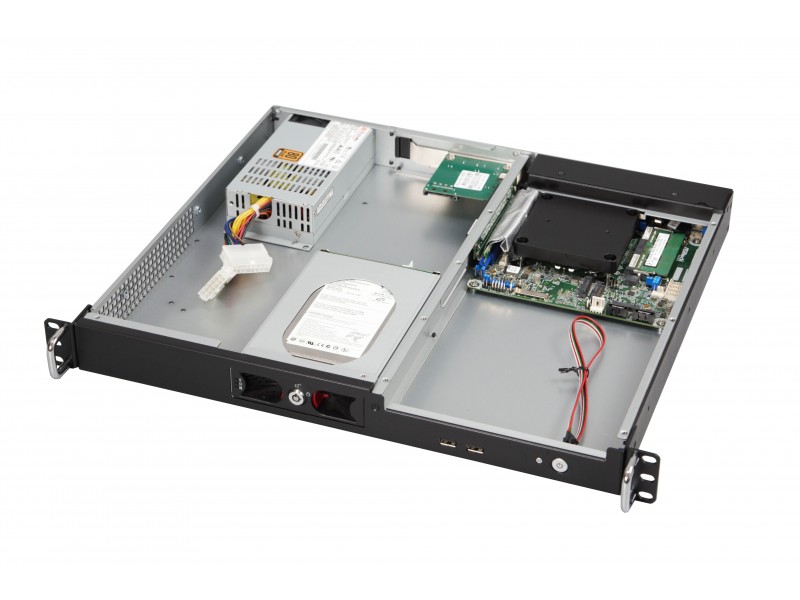

| Internal Structure | |
| Heat-transfer Device | Heat Block |
| HDD/SSD # and type | 2.5" x2 |
| Mechanical & Processing | |
| Dimensions | W:19.00"(482.8mm) x D:15.60"(397.5mm) x H:1.73"(44.45mm) |
| Applied M/B Form Factor | Mini-ITX |
| Material | SGCC |
| Surface | Black Wet Paint with Texture Coat |
| Colour | Black / Customizable Colour |
| Power Solution Option 1 | |
| Internal DC Power Board | C7(80W) DC Power Board |
| External AC Adapter | 60W: Input(AC 100~240V); Output(DC 12V@5A) |
| Power Solution Option 2 | |
| Internal DC Power Board | C7(80W) DC Power Board |
| External AC Adapter | 80W: Input(AC 100~240V); Output(DC 12V@6.67A) |
| Power Solution Option 3 | |
| Internal DC Power Board | C4(150W, 19V~24V) DC Power Board |
| External AC Adapter | 90W: Input(AC 100~240V); Output(DC 19V@4.74A) |
| Power Solution Option 4 | |
| Internal DC Power Board | C4(150W, 19V~24V) DC Power Board |
| External AC Adapter | 120W: Input(AC 100~240V); Output(DC 19V@6.32A) |
