HAKO-C297
Ideal Nano-ITX Enclosure for Industrial Solution
· Easy integration, powerful performance
· Front accessible Compact Clash
· Front accessible with slim ODD
· Support 1 x 2.5" HDD
· Easy integration, powerful performance
· Front accessible Compact Clash
· Front accessible with slim ODD
· Support 1 x 2.5" HDD
Specification

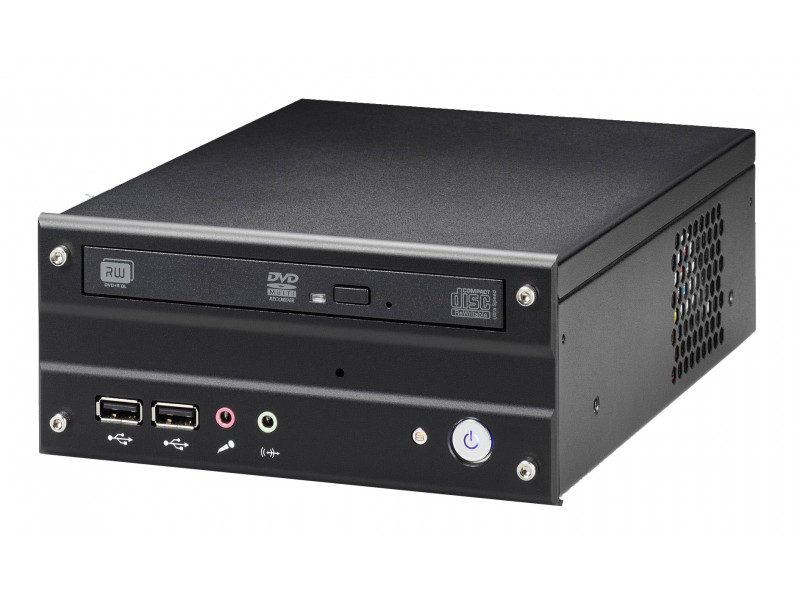

| Front Panel | |
| Power Switch | 1(With LED Indicator) |
| LED Indicators | HDD x1 |
| Audio In/Out | 1 |
| USB Port | 2 |
| Slim Optical Drive Slot | 1 |
| Back Panel | |
| Standard I/O Shield | Customized I/O Shield |

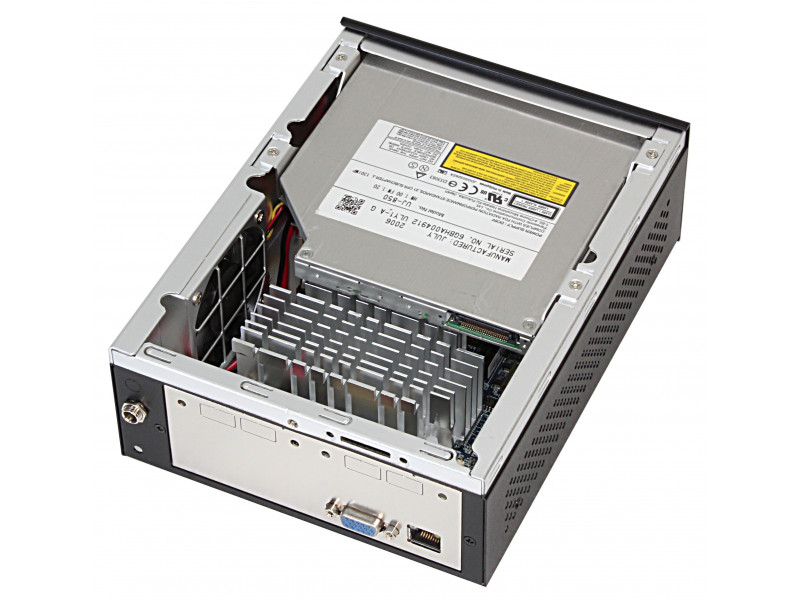

| Internal Structure | |
| System Cooling | 6cm Fan(2 Ball Bearing) x1 |
| Memory Height | Accept Standard Size |
| HDD/SSD # and type | 2.5" x1 |
| Mechanical & Processing | |
| Dimensions | W:8.14" (206.8mm) x D:6.22" (158.0mm) x H:2.57" (65.5mm) |
| Applied M/B Form Factor | Nano-ITX |
| Material | Cold Rolled Steel and Extruded Aluminum Front Panel |
| Surface | Aluminum Front Panel with Anodized Finish, Black Wet Paint with Texture Coat |
| Colour | Black / Customizable Colour |
| Power Solution Option 1 | |
| Internal DC Power Board | C7(80W) DC Power Board |
| External AC Adapter | 60W: Input (AC 100~240V); Output (DC 12V@5A) |
| Power Solution Option 2 | |
| Internal DC Power Board | C7(80W) DC Power Board |
| External AC Adapter | 80W: Input (AC 100~240V); Output (DC 12V@6.67A) |
