ONDO-F301
Mini-ITX Fanless Enclosure with innovative passive thermal cooling for CPU TDP 15W Max
· Custom I/O shield design based on MB
· Custom front/rear panel design
· Simple Assembling and Easy System Integration · Silent, dust-free & energy-efficient operation
· Custom I/O shield design based on MB
· Custom front/rear panel design
· Simple Assembling and Easy System Integration · Silent, dust-free & energy-efficient operation
Specification

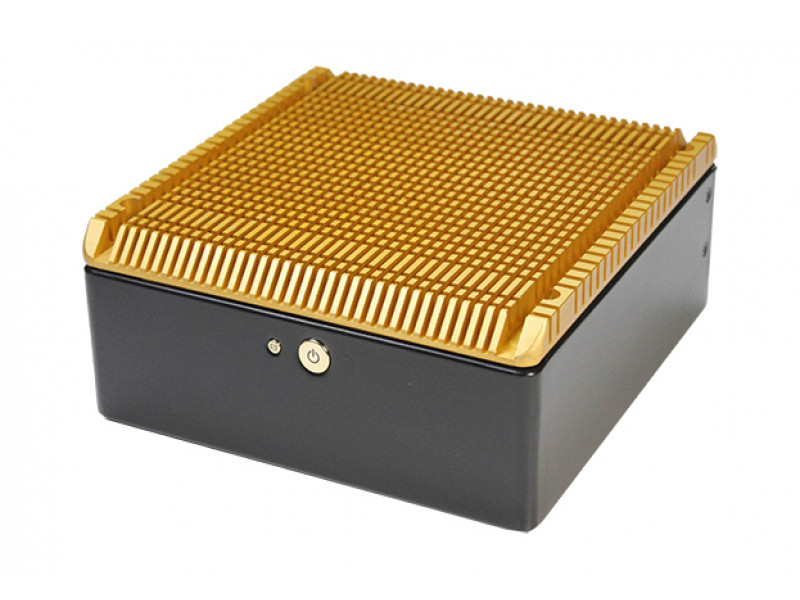

| Front Panel | |
| Power Switch | 1(With LED Indicator) |
| LED Indicators | HDD x1 |

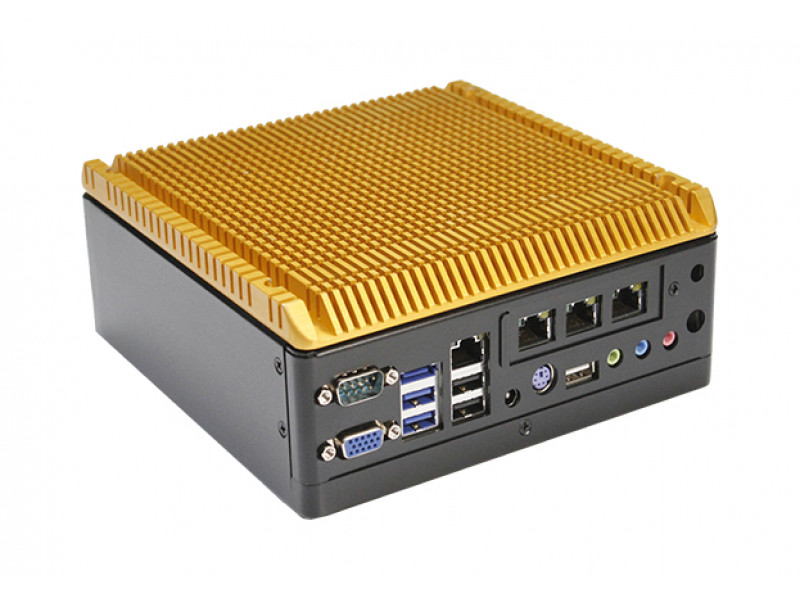

| Back Panel | |
| PS2/KB Connector | 1 |
| RJ-45 | 1 |
| COM | 1 |
| VGA | 1 |
| E-SATA | 1 |
| ANT | 1 |
| Audio Phone Jack | 3 |
| Internal Structure | |
| System Cooling | Thermal Pads/Copper Thermal Block Combination: Which are positioned on the rear-side of the top cover to transfer heat from CPU and chipset(North bridge and South bridge) to top cover. Aluminum-made Heat Sink Top Cover: With extensive heat sink surface from top cover of the chassis, Kiwateks fanless chassis provide excellent heat dissipation to eliminate the heat and solve thermal issues. |
| Copper Thermal Block | Positioned on the Back Side of Top Cover Installation Location Could Be Designed for Different Mini-ITX M/B |
| Memory Height | Accept Standard Size |
| HDD/SSD # and type Options | 2.5"SATA HDD/SSD x 1 |
| Mechanical & Processing | |
| Dimensions | L:6.9"(175.4mm) x W:7.1"(180.4mm) x H:2.84"(72.2mm) |
| Applied M/B Form Factor | Mini-ITX |
| Material | Extruded Aluminum |
| Surface | Aluminum with Anodized Finish |
| Colour | Black / Champagne Gold |
| Power Solution Option 1 | |
| External AC Adapter | 60W: Input(AC 100~240V); Output(DC 12V@5A) |
| Power Solution Option 2 | |
| External AC Adapter | 80W: Input(AC 100~240V); Output(DC 12V@6.67A) |
