ONDO-F390-01
Fanless Chassis for ATX MB(12"x9.6") with CPU TDP 150W Max
· Dual aluminum heatsinks for CPU and expansion card
· Support 4 x expansion slot for PCIe or PCI card
· Silent, dust-free & energy-efficient operation
· Dual aluminum heatsinks for CPU and expansion card
· Support 4 x expansion slot for PCIe or PCI card
· Silent, dust-free & energy-efficient operation
Specification

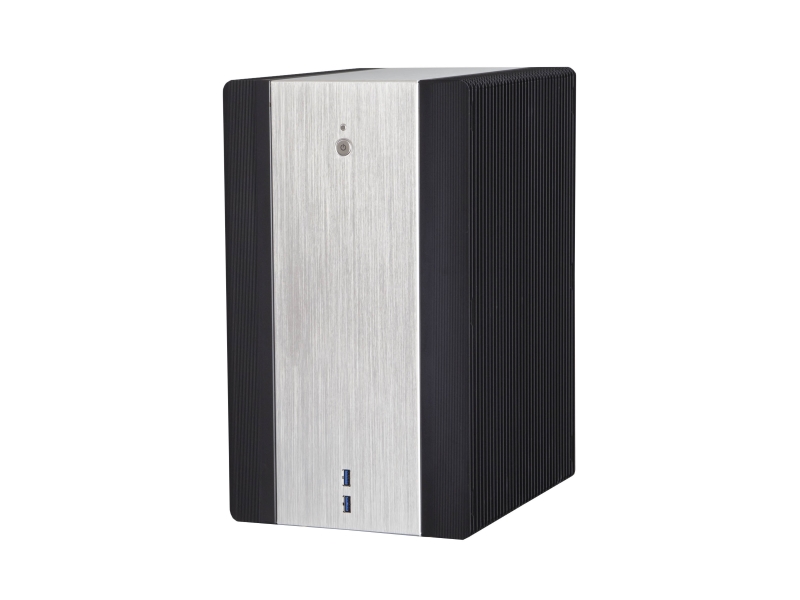

| Front Panel | |
| Power Switch | 1(With LED Indicator) |
| LED Indicators | HDD x1 |
| USB Port | 2 |

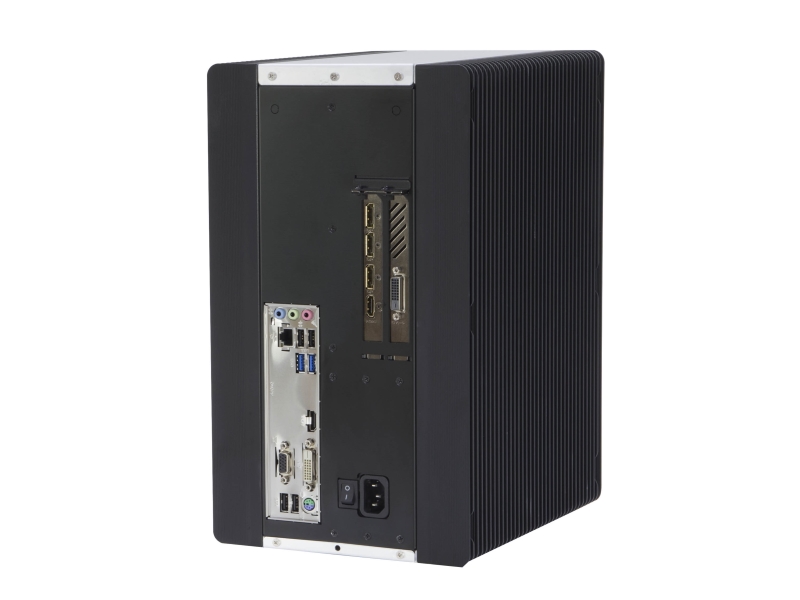

| Back Panel | |
| Standard I/O Slot | 1(Not Included) |
| AC Socket | 1 |
| Expansion Slot | 2 |
| Power Switch | 1 |
| Internal Structure | |
| System Cooling |
1. Thermal Pads/Copper Thermal Block Combination: Which are positioned on the side cover to transfer heat from CPU and chipset to side cover. 2. Aluminum-made Heat Sink Top Cover: With extensive heat sink surface from side cover of the chassis, KiwaTEK's fanless chassis provide excellent heat dissipation to eliminate the heat and solve thermal issues. |
| Copper Thermal Block | Positioned on the Back Side of Side Cover |
| Memory height | Accept standard size |
| HDD/SSD # and type Options | 2.5" x2 |
| Mechanical & Processing | |
| Dimensions | W: 8.02"(203.8mm) x D:10.30"(261.6mm) x H:14.09"(358mm) |
| Applied M/B Form Factor | ATX(12"x9.6") |
| Material | Chassis: AL 5052 1.2T Heatsinks: AL 6063 |
| Surface | Black Wet Paint with Texture Coat |
| Colour | Black / Customizable Colour |
| Power Solution Option | |
| Internal Power Supply | 450W Fanless Power Supply |
