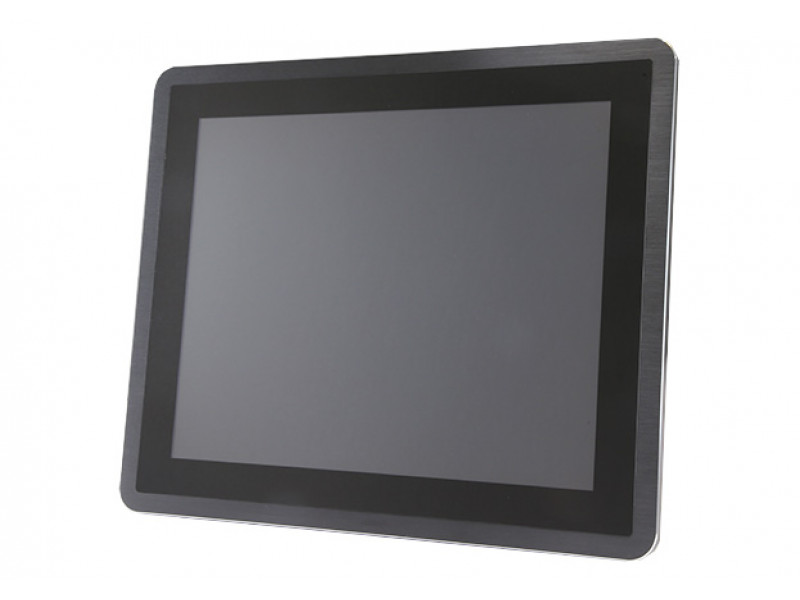

OSU-P1501
15" panel with touch
· For 3.5" SBC with CPU TDP 35W Max
· IP65 front bezel
· Silent and dust-free
· For 3.5" SBC with CPU TDP 35W Max
· IP65 front bezel
· Silent and dust-free
Specification
| LCD | Resolution: 1,024 (H) × 768 (V) pixels Brightness: 450cd/m2 (typ.) Color Support: 16.2M/262k Contrast Ratio: 700:1 (typ.) Response Time: 8ms (typ.) |
| Touch | Touchscreen Type: Projected Capacitive Surface Hardness: ≥7H Durability: 100,000,000 times Transparency: ≥90% |
| TDP | Max. 15W |
| Storage | 2.5” HDD x 1 |
| Form Factor | 3.5” SBC |
| Dimension | 194.3 x 132.1 x 51.32mm |
| Material | SGCC / Anodized Aluminum Heatsink |
| Surface | Black Wet Paint With Texture Coat |
| Power Solution Option 1 | |
| External AC Adapter | 60W: Input (AC 100~240V); Output (DC 12V@5A) |
| Power Solution Option 2 | |
| External AC Adapter | 80W: Input (AC 100~240V); Output (DC 12V@6.67A) |
