TAWA-T1102


1U Industrial Rackmount Chassis for Mini-ITX systems

· Front accessible connectors with 4 x dual USB port
· Support 2 x expansion slot for PCIe or PCI card
· Compact size with only 208.80mm in depth
· PCIe x16 riser card(optional)



Specification

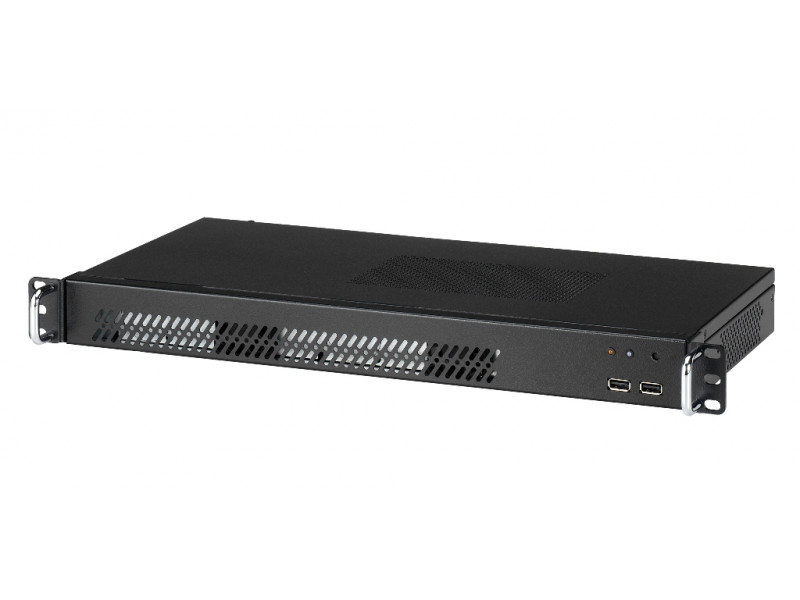

Front Panel
Power Switch 1
LED Indicators HDD x1; Power x1
USB 2.0 Port 2
Reset Switch 1
Back Panel
Standard I/O Shield With Universal I/O Shields
Expansion Slot 2
DB9 Port 1

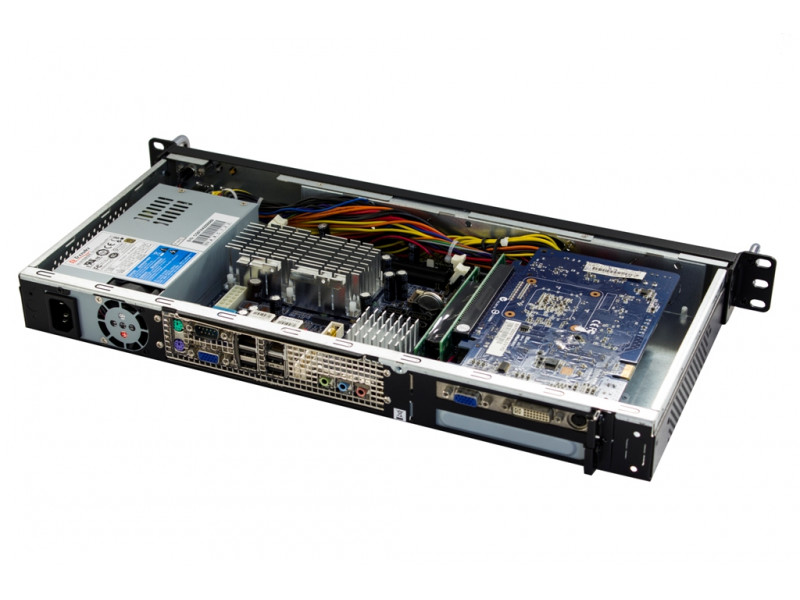

Internal Structure
System Cooling 4cm Fan(2 Ball Bearing) x2(Can Add up to 4 Fans)
Memory Height Accept Standard Size
HDD/SSD # and type 2.5'' x1 or 3.5" x1 or 2.5'' x2
Mechanical & Processing
Dimensions W:19.00"(482.6mm) x D:8.20"(208.8mm) x H:1.73"(43.9mm)
Applied M/B Form Factor      Mini-ITX
Material Heavy Duty Cold-rolled Steel
Surface Black Wet Paint with Texture Coat
Colour Black / Customizable Colour
Power Solution Option 1
Internal DC Power Board C7(80W) DC Power Board
External AC Adapter 60W: Input(AC 100~240V); Output(DC 12V@5A)
Power Solution Option 2
Internal DC Power Board C7(80W) DC Power Board
External AC Adapter 80W: Input(AC 100~240V); Output(DC 12V@6.67A)
Power Solution Option 3
Internal DC Power Board C4(150W, 19V~24V) DC Power Boar
External AC Adapter 90W: Input(AC 100~240V); Output(DC 19V@4.74A)
Power Solution Option 4
Internal DC Power Board C4(150W, 19V~24V) DC Power Boar
External AC Adapter 120W: Input(AC 100~240V); Output(DC 19V@6.32A)
Power Solution Option 5
Flex ATX Power Supply Flex ATX 250/300/400watts Power Supply (AC 110~240V Auto-switching)
