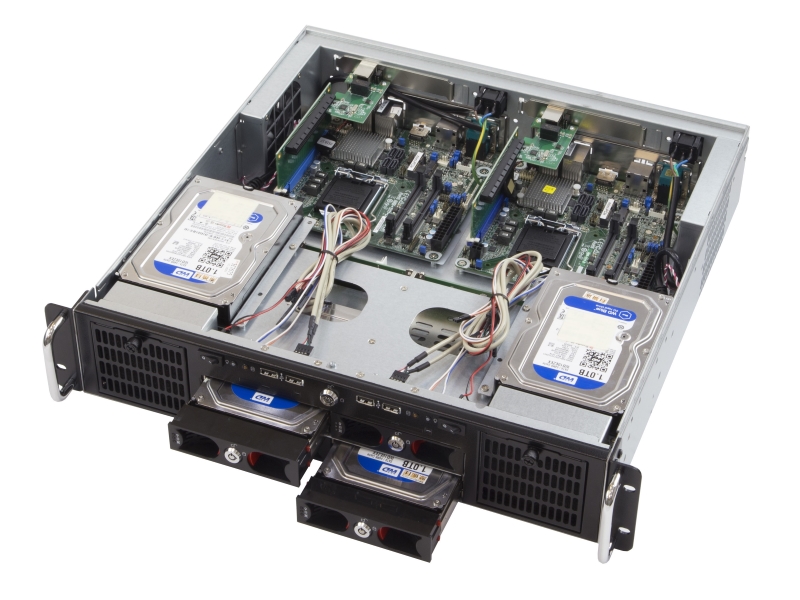

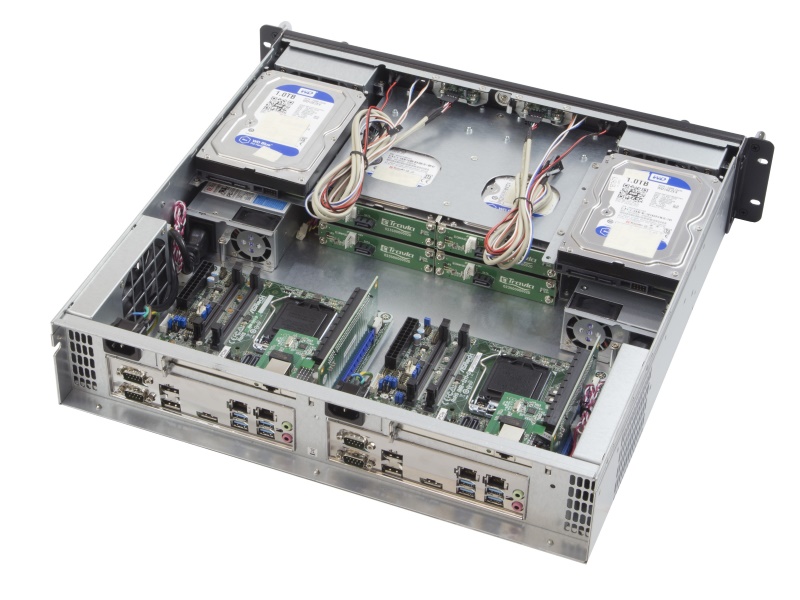

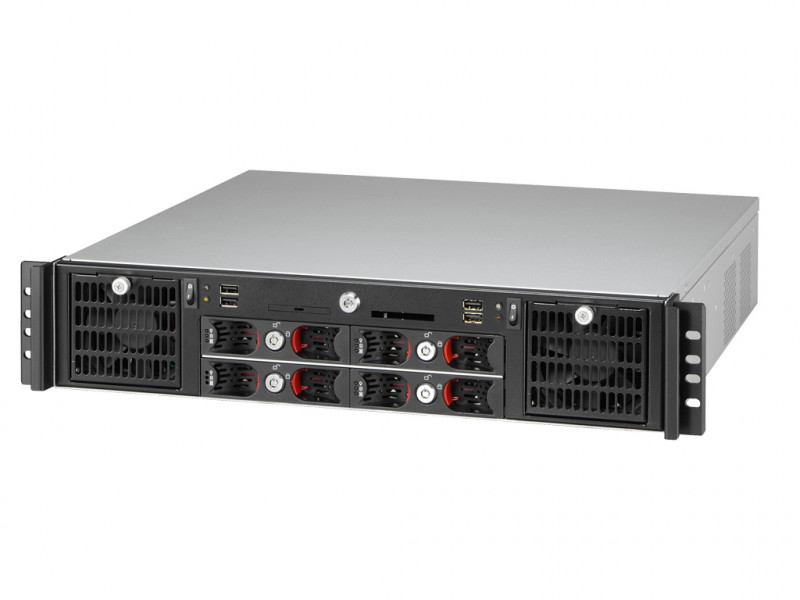

TAWA-T2240
2U Industrial Rackmount Chassis for Dual Mini-ITX systems
· Removable fan cage door design for easy access
· DC cooling fans with removable air filter
· Support 4 x 3.5" SATA tray
· Removable fan cage door design for easy access
· DC cooling fans with removable air filter
· Support 4 x 3.5" SATA tray
Specification
| Front Panel | ||
| Power Switch | 2 | |
| LED Indicators | HDD x2; Power x2 | |
| USB 2.0 Port | 2 x2 | |
| Compact Flash Slot | 2 x2 | |
| HDD/SSD # and type | 3.5"HDD x 4 | |
| Back Panel | ||
| Standard I/O Shield | 2(Not Included) | |
| Expansion Slot | 2 | |
| AC Socket | 2 | |
| Internal Structure | ||
| System Cooling | 8cm Fan x4(2 Ball Bearing) | |
| Memory Height | Accept Standard Size | |
| HDD/SSD # and type |
|
|
| Mechanical & Processing | ||
| Dimensions | W:19.00"(482.6mm) x D:17.50"(446mm) x H:3.46"(88mm) | |
| Applied M/B Form Factor | Mini-ITX | |
| Material | All Aluminum Chassis Construction | |
| Surface | Black Wet Paint with Texture Coat | |
| Colour | Black / Customizable Colour | |
| Power Solution Option | ||
| Flex ATX Power Supply | Flex ATX 250/300/400 watts Power Supply (AC 110~240V Auto-switching) | |
