TAWA-T30C0
2U Industrial Rackmount Chassis for Pico-ITX Systems
· Support up to 12 systems at once
· 1 x 2.5" HDD tray for each system
· Support up to 12 systems at once
· 1 x 2.5" HDD tray for each system
Specification

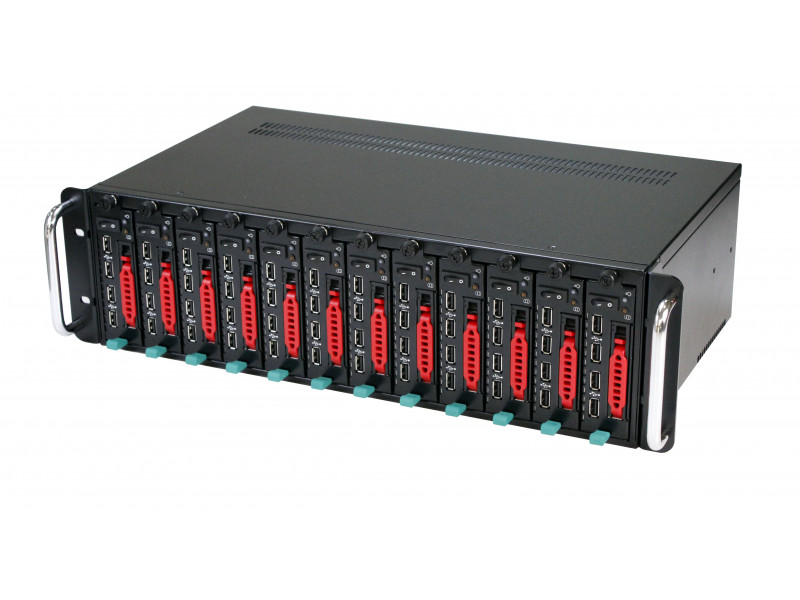

| Front Panel | |
| Power Switch | 12 |
| LED Indicators | HDD x12; Power x12 |
| USB 2.0 Port | 4 x12 |
| HDD/SSD # and type | 2.5'' x12 |

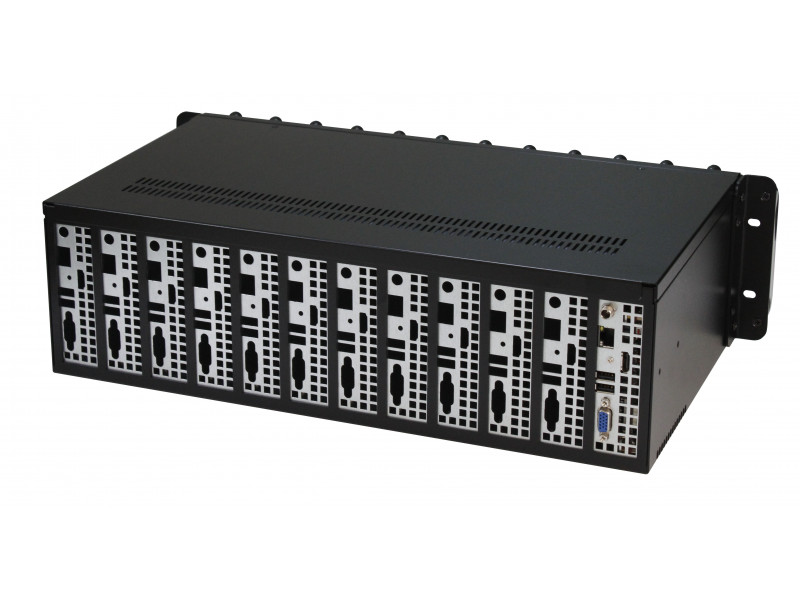

| Back Panel | |
| Standard I/O Shield | VIA Pico I/O Shield |
| Internal Structure | |
| System Cooling | 4cm Blower x12 |
| Memory Height | Fit for Pico-ITX Board |
| HDD/SSD # and type | 2.5'' x12 |
| Mechanical & Processing | |
| Dimensions | W:19.00"(482.6mm) x D:10.50"(266.8mm) x H:5.19"(132mm) |
| Applied M/B Form Factor | Pico-ITX |
| Material | Heavy Duty Cold-rolled Steel |
| Surface | Black Wet Paint with Texture Coat |
| Colour | Black / Customizable Colour |
| Power Solution Option | |
| External AC Adapter x12 | 60W : Input(AC 100~240 V); Output(DC 12V@5A) |
