TAWA-T4401-01
4U Industrial Rackmount Chassis for ATX MB
· Support 7 x expansion slot for PCIe or PCI card
· Compact size with only 280.8mm in depth
· Excellent cooling with 2 x 8cm fan(2 ball bearing)
· Support 2 x 3.5" HDD
· Support 7 x expansion slot for PCIe or PCI card
· Compact size with only 280.8mm in depth
· Excellent cooling with 2 x 8cm fan(2 ball bearing)
· Support 2 x 3.5" HDD
Specification

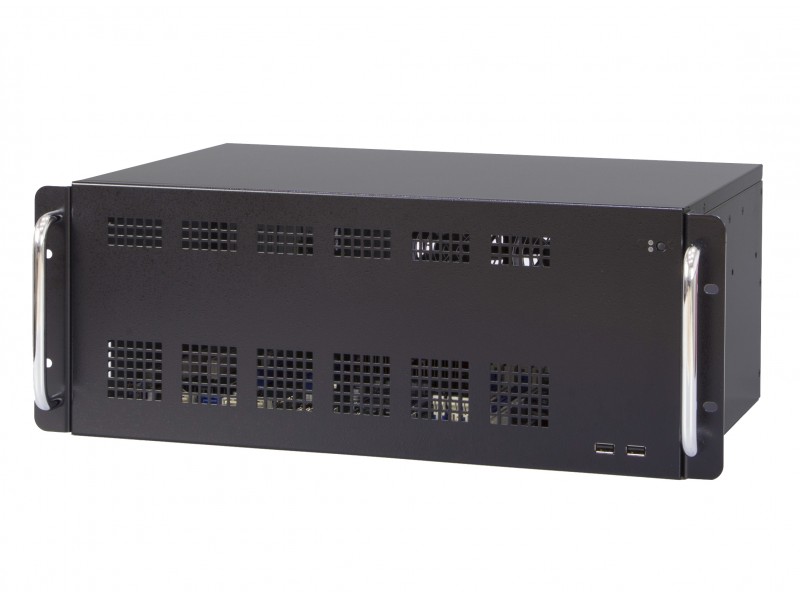

| Front Panel | |
| Power Switch | 1 |
| LED Indicators | HDD x1; Power x1 |
| USB Port | 2 |

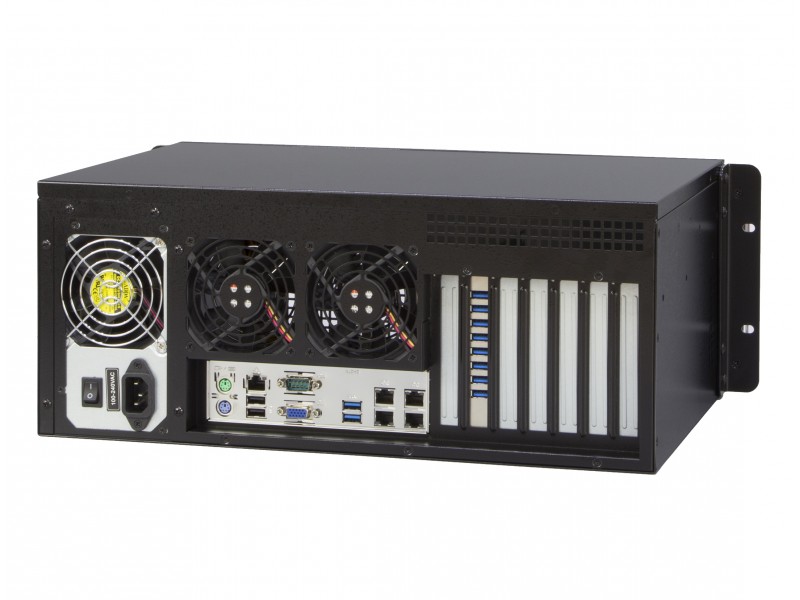

| Back Panel | |
| Standard I/O Shield | 1(Not Included) |
| Expansion Slot | 7 |
| PSII Power Socket | 1 |

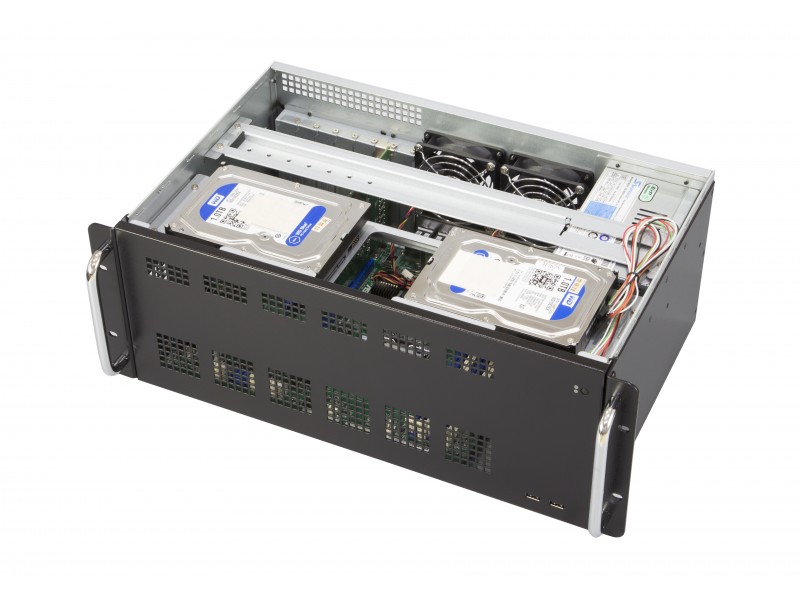

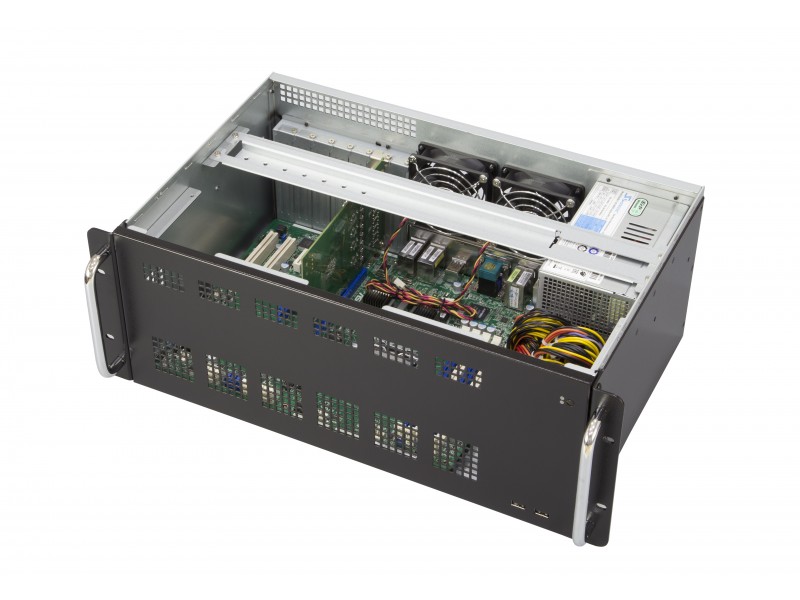

| Internal Structure | |
| System Cooling | 8cm Fan(2 Ball Bearing) x2 |
| Memory Height | Accept Standard Size |
| HDD/SSD # and type | 3.5" x2 |
| Mechanical & Processing | |
| Dimensions | W:19.00"(482.6mm) x D:11.05"(280.8mm) x H: 6.92"(176mm) |
| Applied M/B Form Factor | ATX |
| Material | Heavy Duty Cold-rolled Steel |
| Surface | Black Wet Paint with Texture Coat |
| Colour | Black / Customizable Colour |
| Power Solution Option | |
| PSII Power Supply | PSII 300W/400W/500W Power Supply |
