TAWA-T4802-1
4U Industrial Rackmount Chassis for ISA/PICMG SBC
· Removable fan cage door design for easy access
· Support 14 x expansion slot for PCIe or PCI card
· Support swappable module on front panel
- 1. 3 x 5.25'ODD
- 2. 3 x 3.5'HDD tray + 1 x 5.25"ODD
· Removable fan cage door design for easy access
· Support 14 x expansion slot for PCIe or PCI card
· Support swappable module on front panel

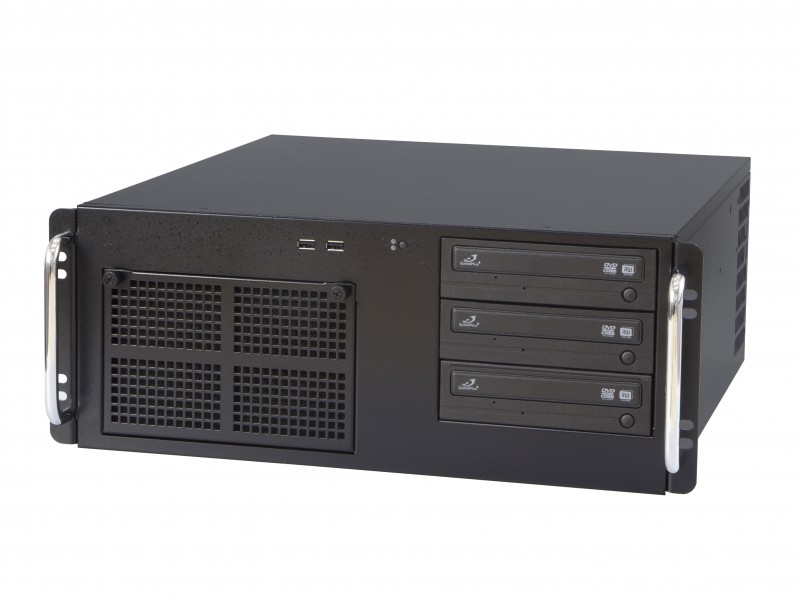

- 1. 3 x 5.25'ODD

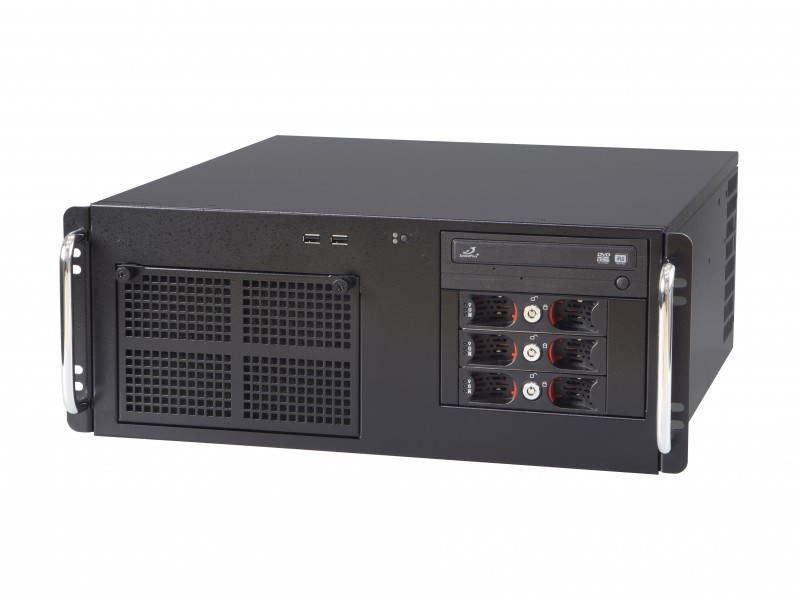

- 2. 3 x 3.5'HDD tray + 1 x 5.25"ODD
Specification
| Front Panel | |
| Power Switch | 1 |
| LED Indicators | HDD x1; Power x1 |
| HDD/SSD # and type | 5.25" ODD x3 or 3.5" x3 + 5.25" ODD x1 (Replaceable Module) |
| USB Port | 2 |
| System cooling | 8cm Fan(2 Ball Bearing) x2 |
| Back Panel | |
| Expansion Slot | 14 |
| Internal Structure | |
| Memory Height | Accept Standard Size |
| Mechanical & Processing | |
| Dimensions | W:19.00"(482.6mm) x D:18.10"(440.8mm) x H:6.92"(175.8mm) |
| Applied M/B Form Factor | ISA/PICMG Backplane |
| Material | SGCC |
| Surface | Black Wet Paint with Texture Coat |
| Colour | Black / Customizable Colour |
| Power Solution Option 1 | |

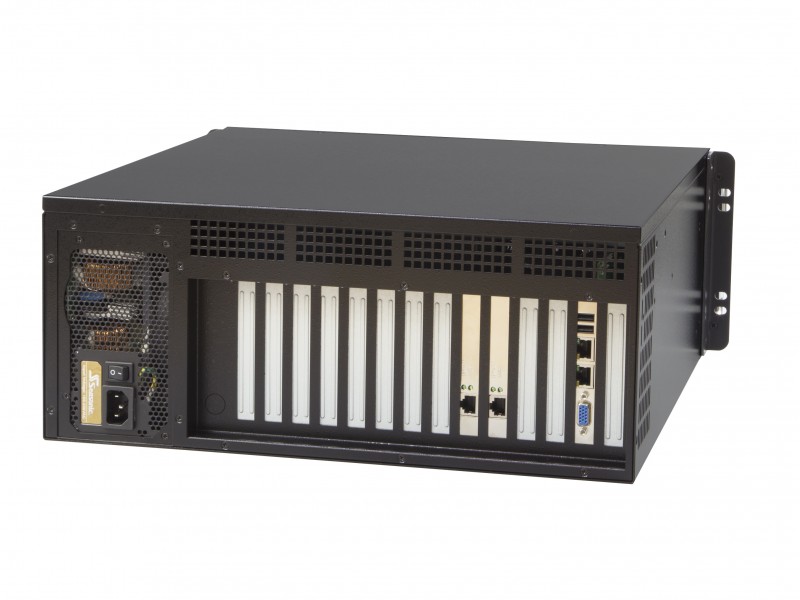

| Internal Power Supply | PSII Power Supply |
| Power Solution Option 2 | |

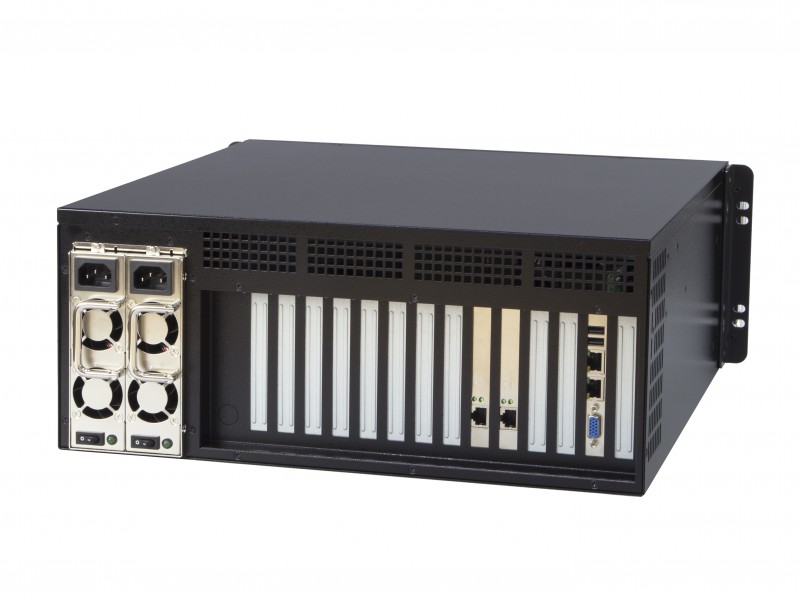

| Redundant Power Supply | Mini-Redundant Power Supply |
