TAWA-T4805


4U Industrial Rackmount Chassis for 12"x13" Server Board

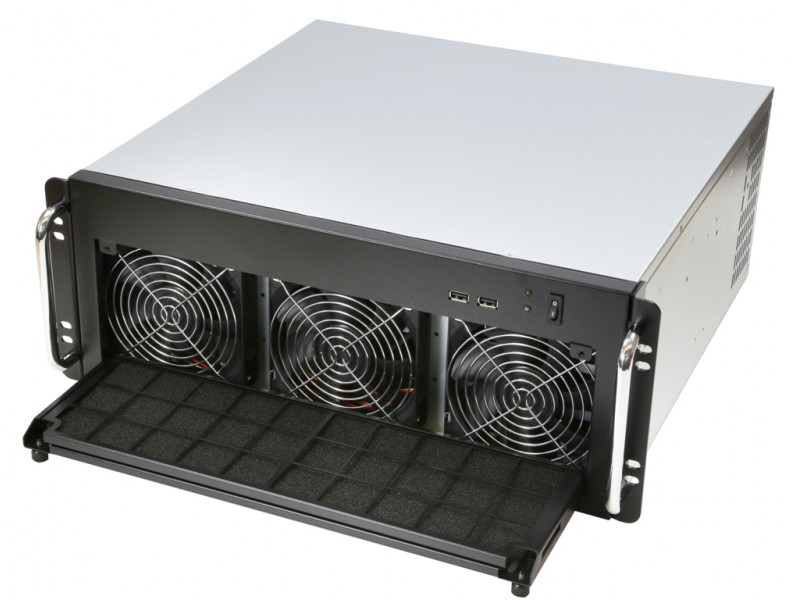

· Removable fan cage door design for easy access
· Excellent cooling with 3 x 12cm fan(2 ball bearing)
· Support 7 x expansion slot for PCIe or PCI card



Specification

Front Panel
Power Switch 1
LED Indicators HDD x1; Power x1
USB 2.0 Port 2
Back Panel
Standard I/O Shield 1 (Not Included)
Expansion Slot 7
COM Port 6
AC Socket 1
Internal Structure
System Cooling 12cm Fan(2 Ball Bearing) x3
Memory Height Accept Standard Size
HDD/SSD # and type 3.5" x5
Mechanical & Processing
Dimensions W:19.00"(482.6mm) x D:17.60"(448.8mm) x H:6.92"(175.8mm)
Applied M/B Form Factor  Server Board
Material Heavy Duty Cold-rolled Steel
Surface Black Wet Paint with Texture Coat
Colour Black / Customizable Colour
Power Solution Option
PSII Power Supply PSII 300W/400W/500W Power Supply
