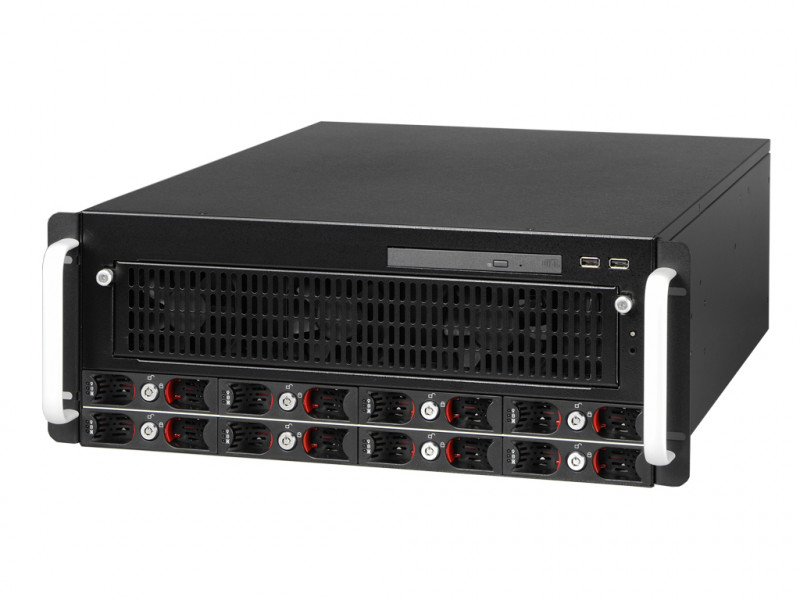

TAWA-T4Q80
4U Industrial Rackmount Chassis for Server Board
· Removable fan cage door design for easy access
· Featuring close loop liquid cooling system
· DC cooling fans with removable air filter
· Support 8 x 3.5" SATA tray
· Removable fan cage door design for easy access
· Featuring close loop liquid cooling system
· DC cooling fans with removable air filter
· Support 8 x 3.5" SATA tray
Specification
| Front Panel | |
| Power Switch | 1 |
| LED Indicators | HDD x1; Power x1 |
| USB 2.0 Port | 2 |
| Slim Optical Drive Slot | 1 |
| HDD/SSD # and type | 3.5" x8 |
| Back Panel | |
| Standard I/O Shield | 1(Not Included) |
| Expansion Slot | 7 |
| AC Socket | 1 |

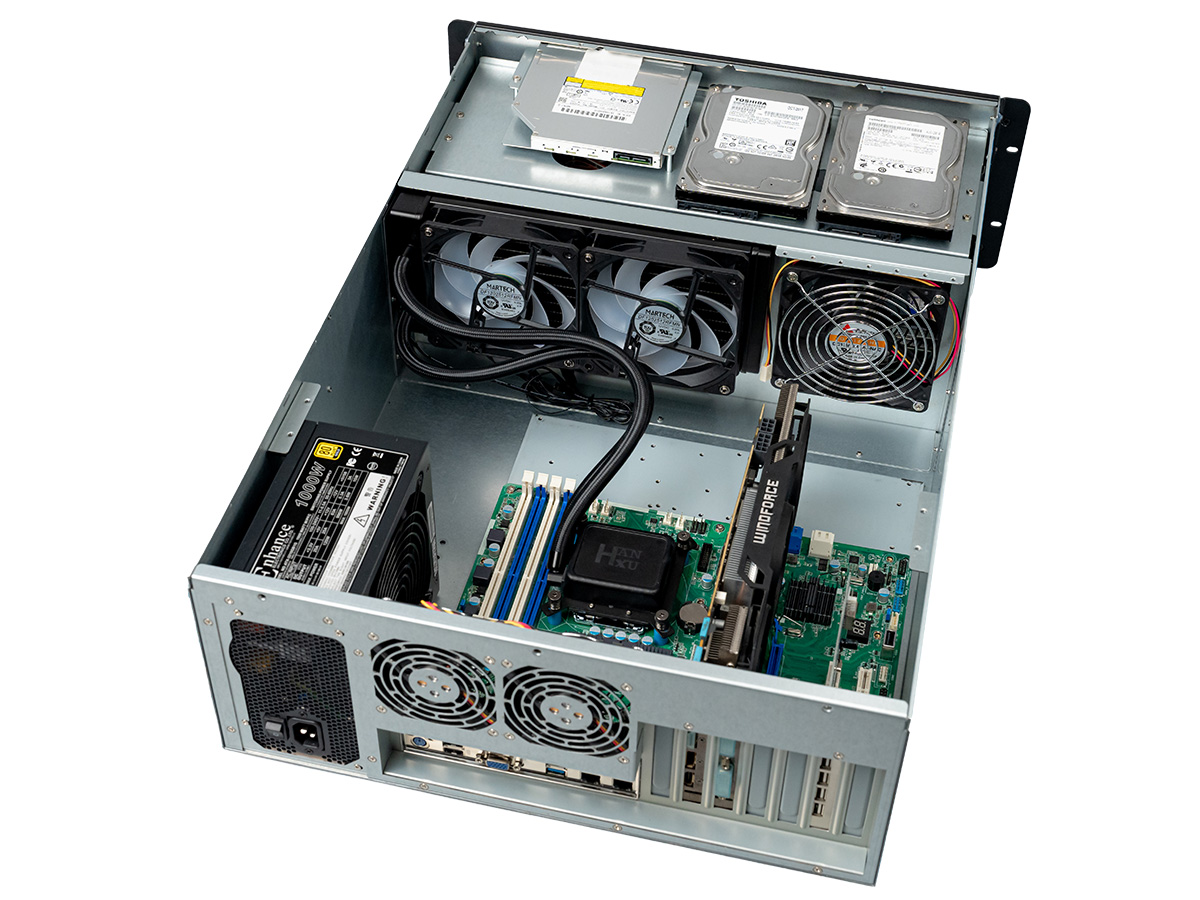

| Internal Structure | |
| System Cooling | Close Loop CPU Liquid Cooler with 8cm Fan x5 + 12cm Fan x1(2 Ball Bearing) |
| Memory Height | Accept Standard Size |
| HDD/SSD # and type | 3.5" x2 |
| Mechanical & Processing | |
| Dimensions | W:19.00"(482.6mm) x D:24.30"(616.3mm) x H:6.92"(175.8mm) |
| Applied M/B Form Factor | Server Board |
| Material | Heavy Duty Cold-rolled Steel |
| Surface | Black Wet Paint with Texture Coat |
| Colour | Black / Customizable Colour |
| Power Solution Option | |
| PSII Power Supply | PSII 300W/400W/500W Power Supply |
