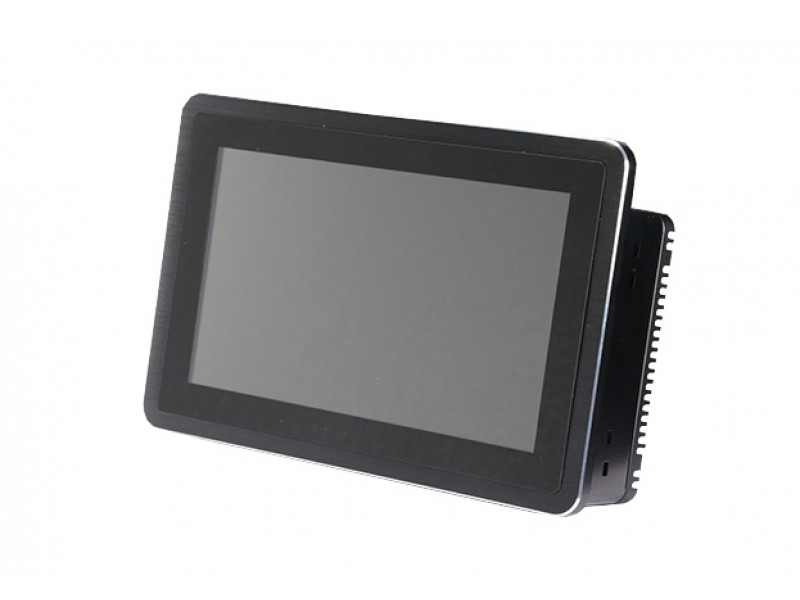

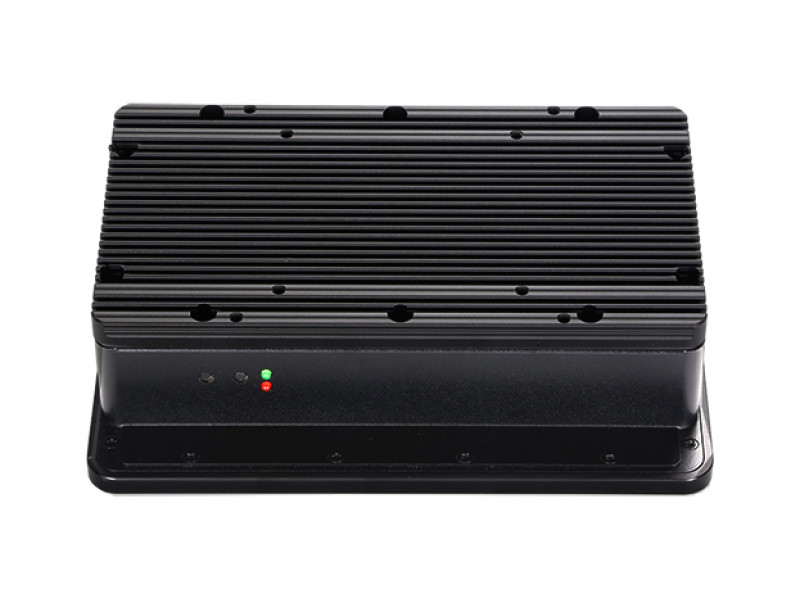

OSU-P0701
7.1" panel with touch
· For 3.5" SBC with CPU TDP 10W Max
· IP65 front bezel
· Silent and dust-free
· For 3.5" SBC with CPU TDP 10W Max
· IP65 front bezel
· Silent and dust-free
Specification
| LCD | Resolution: 1024 RGB (H)×600(V) Brightness: 320cd/m2 (typ.) Color Support: 16.7M Contrast Ratio: 500:1 (typ.) Response Time: 20ms (typ.) |
| Touch | Touchscreen Type: Projected Capacitive Surface Hardness: ≥6H Durability: 100,000,000 times Transparency: ≥90% |
| TDP | Max. 10W |
| Form Factor | 3.5” SBC |
| Dimension | 194.3 x 132.1 x 51.32mm |
| Material | SGCC / Anodized Aluminum Heatsink |
| Surface | Black Wet Paint With Texture Coat |
| Power Solution Option 1 | |
| External AC Adapter | 60W: Input (AC 100~240V); Output (DC 12V@5A) |
| Power Solution Option 2 | |
| External AC Adapter | 80W: Input (AC 100~240V); Output (DC 12V@6.67A) |
